Unmanned Aerial Vehicle Platform
1. Superstructure: under‑body storage bays, vertical lifting tail‑lift, right‑side access ladder, roof guardrail, aluminum roller shutter doors
2. UAV storage: built‑in dedicated platform with locking fixtures
3. Compressed air foam system (PTO driven): Class‑A foam compatible, auto proportional mixing
4. Electrical system: IP55 harness protection, multi‑protection circuit, reserved AC220V mains interface
5. Warning & lighting: roof warning light bar with siren, 6 pcs red strobe lights, 4 site working lamps, foam‑system integrated control console
6. Emergency communication: 350 MHz vehicle radio, supports group / individual call
7. Documentation: vehicle homologation certificate, complete spare‑parts & tool list
|
Overall Dimensions (mm) |
10200×2550×3960 |
|---|---|
|
Maximum speed (km/h) |
110 |
|
Number of leaf springs |
3/3+2 |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.
Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle Technical Parameters | |||
| Overall Dimensions: | 10200×2550×3960(mm) | Cargo box dimensions: | 7110×2550×3500(mm) |
| Total Mass: | 19495(Kg) | Cab: | Double row cab |
| Anti-lock Braking System: | Yes | Front passenger: | 2+4 (persons) |
| Approach Angle/Departure Angle: | 16/10(°) | Front overhang/Rear overhang: | 1450/2950 |
| Axle Load: | 7100/13000 | Wheelbase: | 5800(mm) |
| Number of Axles: | 2 | Maximum speed: | 110(km/h) |
| Turning form: | Steering wheel | Number of leaf springs: | 3/3+2 |

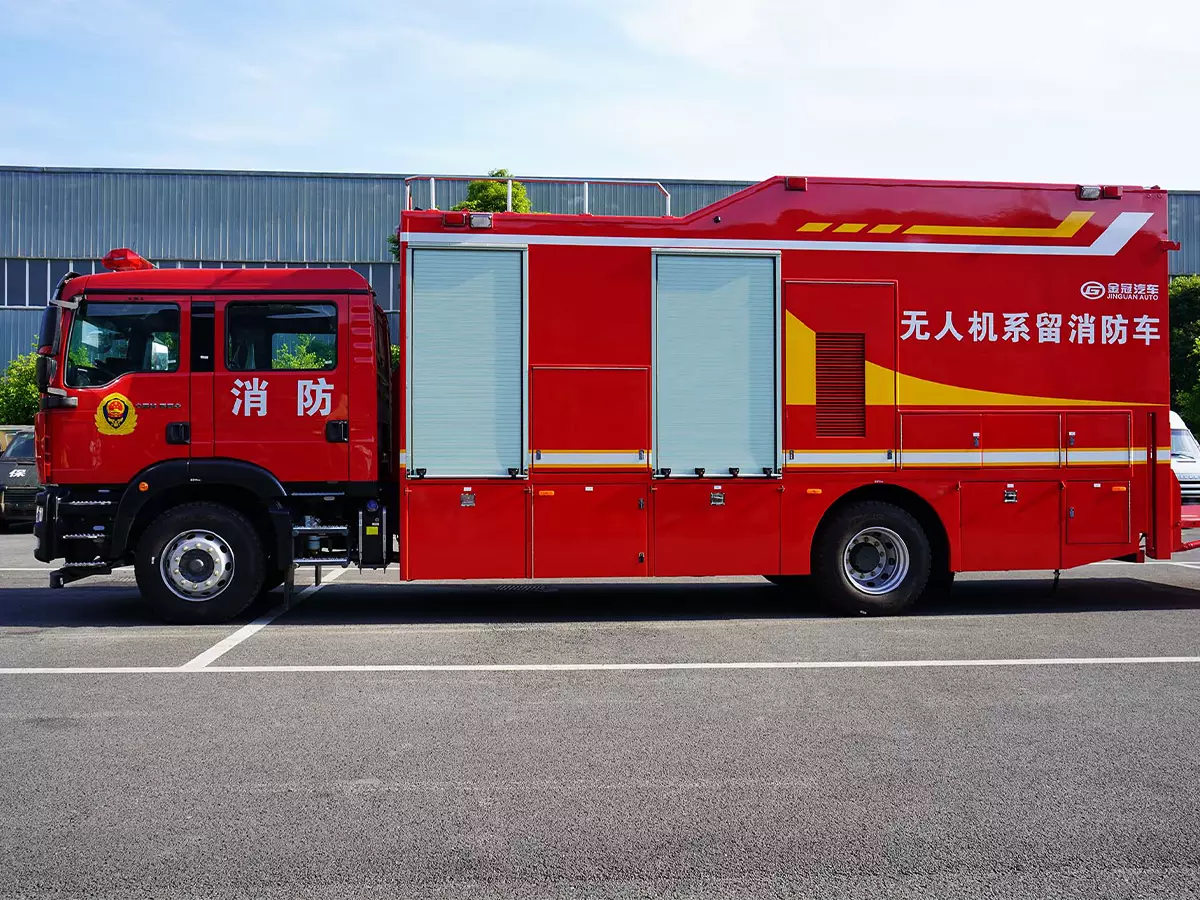

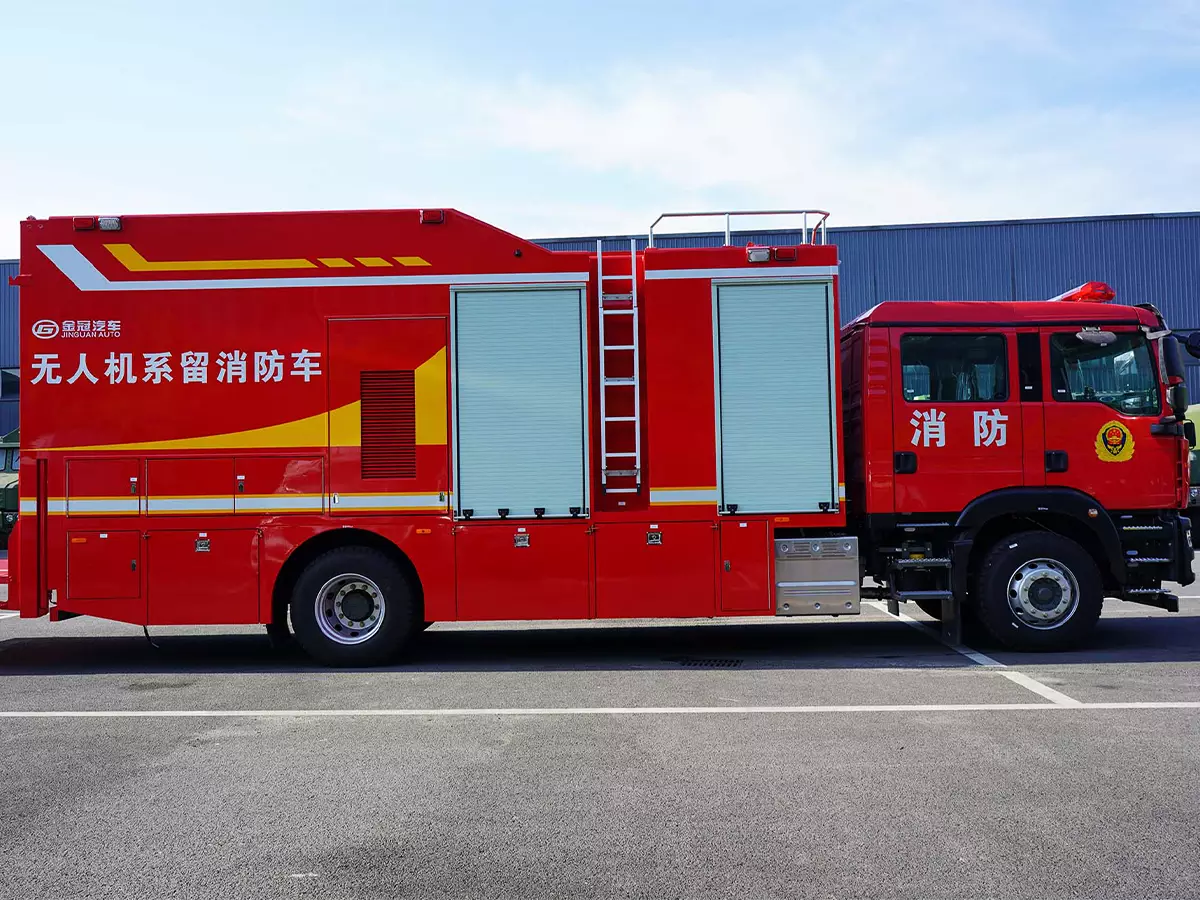

| In-vehicle amenities | 1. Superstructure: Equipped with lower skirt compartments, a vertical-lift tail lift, a roof access ladder on the right side, roof guardrails, aluminum alloy roller shutter doors, etc.; | ||

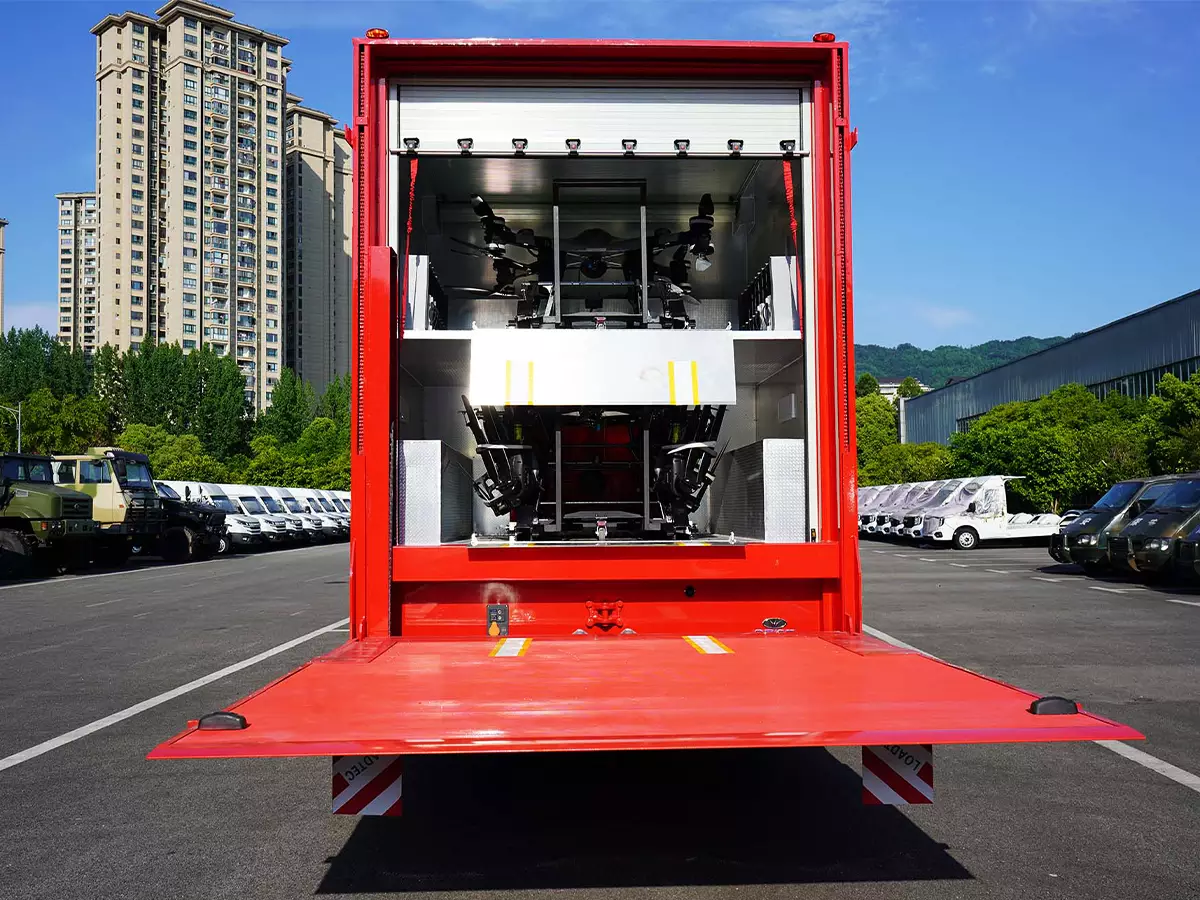

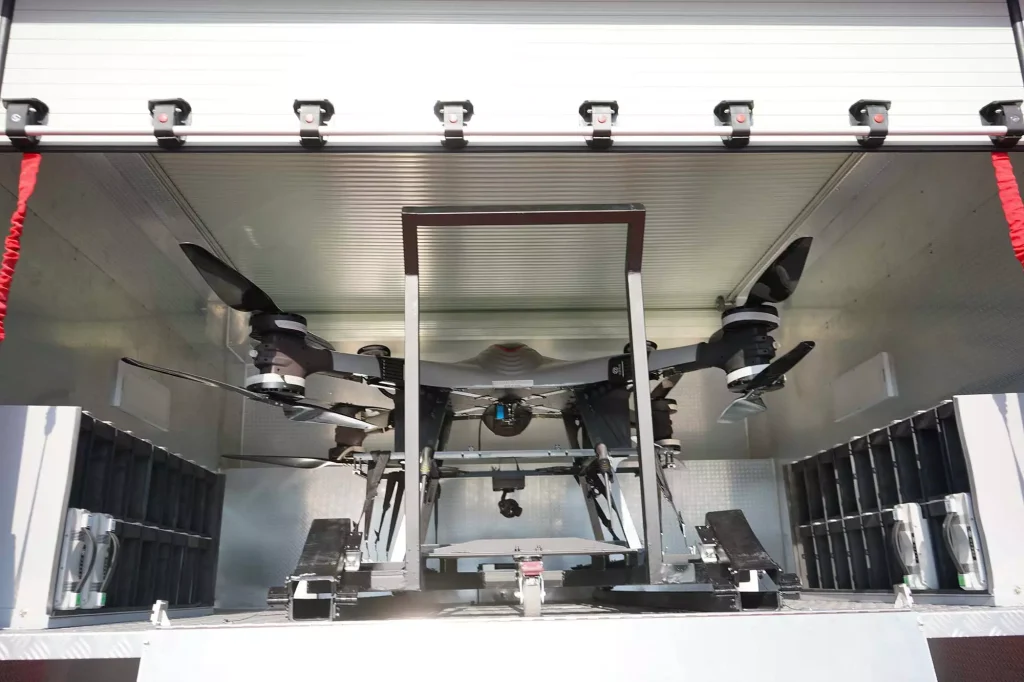

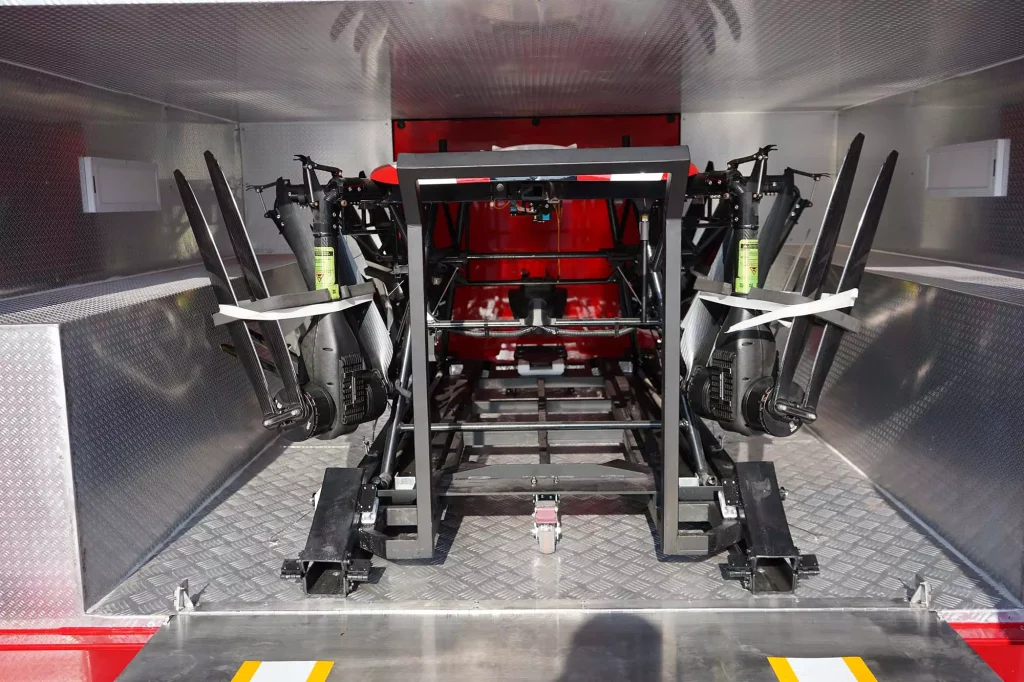

| 2. UAV Storage: Features a dedicated internal storage platform with locking/securing mechanisms, ensuring stable stowage and convenient loading/unloading; | |||
| 3. Vehicle-mounted Compressed Air Foam (CAF) System: Powered by the chassis engine via PTO; compatible with Class A foam; fully automatic proportional mixing control; mixed solution flow rate of 400 L/min, CAF output of 3000 L/min; foam pump max. pressure 14 MPa (≥12 L/min @ 1.2 MPa); fire pump max. flow rate 1200 L/min; air compressor rated air supply 5500 L/min; water system includes dedicated fresh water and foam tanks; | |||
| 4. Superstructure Electrical System: High-temperature resistant wiring with ≥IP55 protection for wire harnesses; includes protection against overcurrent, overvoltage, short circuits, and reverse polarity; includes a reserved AC 220V mains power interface; | |||
| 5. Warning and Lighting: All-red full-width warning light bar on the cab (with integrated siren); six all-red strobe lights (three on each side of the body) with centralized cab control; four work lights for the operational area, with switches integrated into the foam system control console; | |||
| 6. Emergency Communication: Equipped with a 350 MHz vehicle-mounted radio compatible with existing handheld fire service radios; supports group calls, individual calls, and stable voice dispatching; | |||
| 7. Compliance Documentation: Includes a vehicle conformity certificate matching the MIIT filing records and a complete inventory of onboard equipment and tools. | |||
