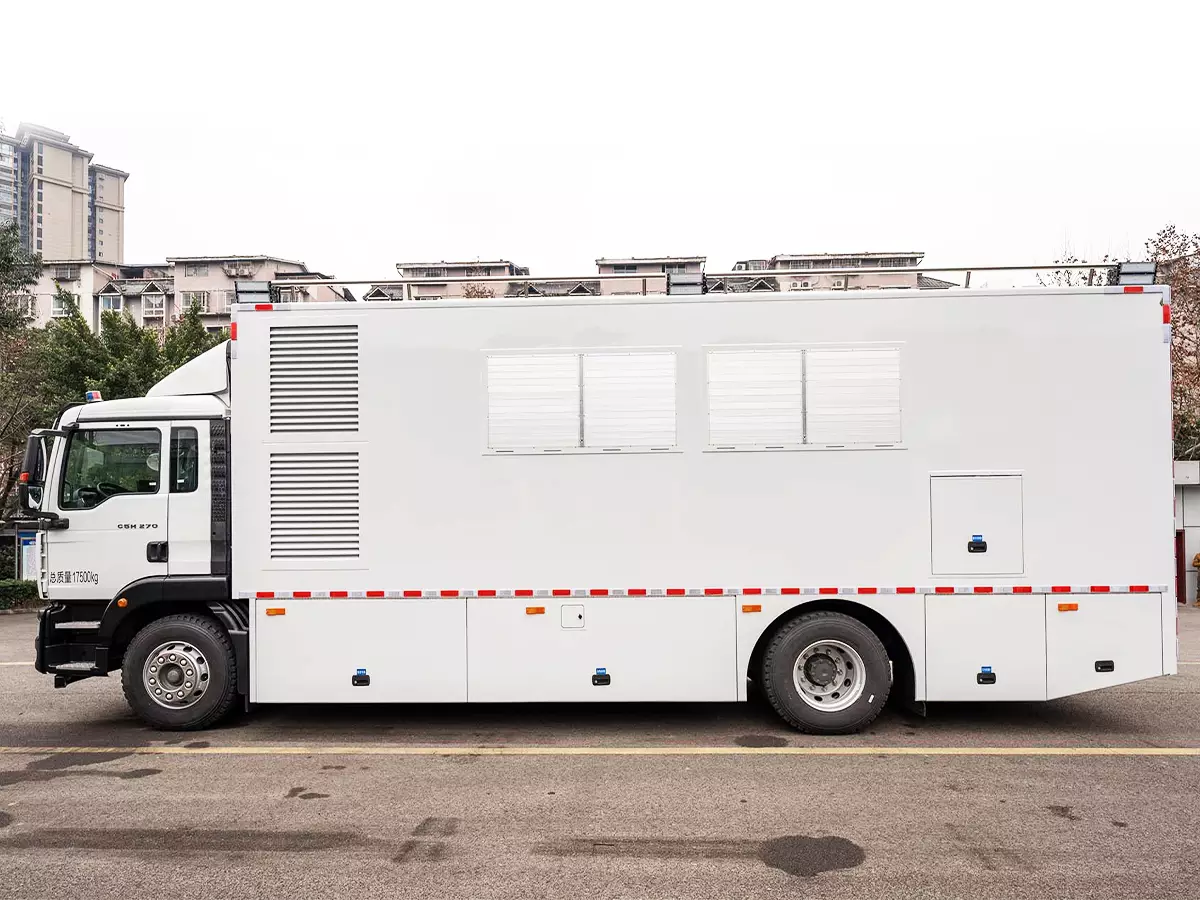

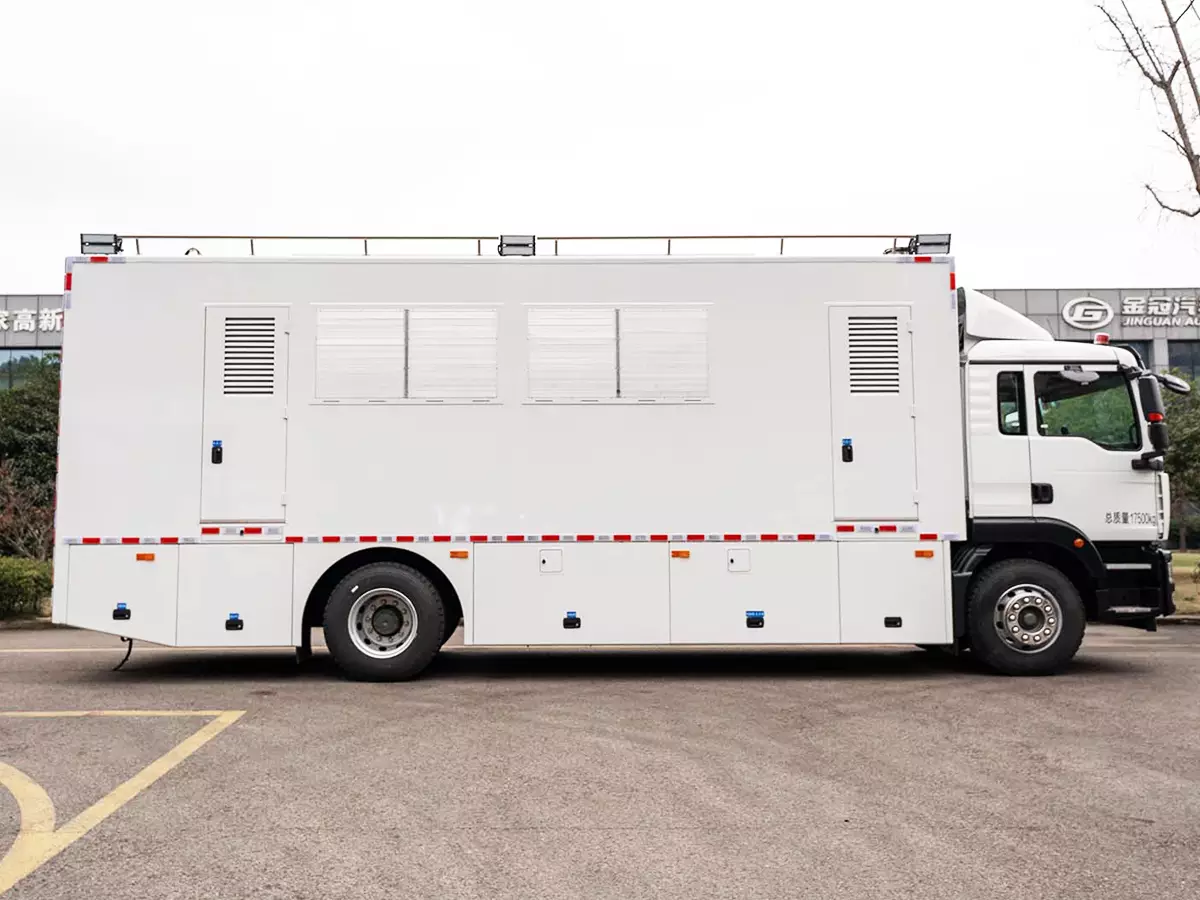

Power Supply Vehicle
Field logistical support vehicle series: camp, catering, shower, water‑purification, bedding‑washing, hand‑washing, power‑supply, lighting and refrigerated vehicles. Modular customized body, self‑contained water & power system, for emergency rescue and field mission support.
|
Maximum Speed (km/h): |
110 |
|---|---|
|
Displacement (L): |
5.2 |
|
Fuel type |
Diesel |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.
Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle Name: | Power supply vehicle | Announcement Model: | SLT5103XDYF2L |
| Chassis Brand: | Qingling | Chassis Model: | QL1110ANKAY |
| Cargo Box Dimensions (mm): | – | Overall Dimensions (mm): | 6980×2200×3250 |
| Total weight (Kg): | 10000 | Curb Weight (Kg): | 9805 |
| Anti-lock braking system: | Yes | Approach/Departure Angle: | 17/13(°) |
| Axle load: | 3300/6700 | Front/Rear Overhang (mm): | 1110/2055 |
| Front track: | 1680 | Rear Track: | 1650 |
| Drive type: | 4×2 | Wheelbase: | 3815 |
| Maximum speed (km/h): | 110 | Tires: | 235/75R17.5 |
| Displacement (L): | 5.2 | Power/Horsepower: | 139(kw)/190(PS) |
| Fuel type: | Diesel | Emission Standard: | China VI |

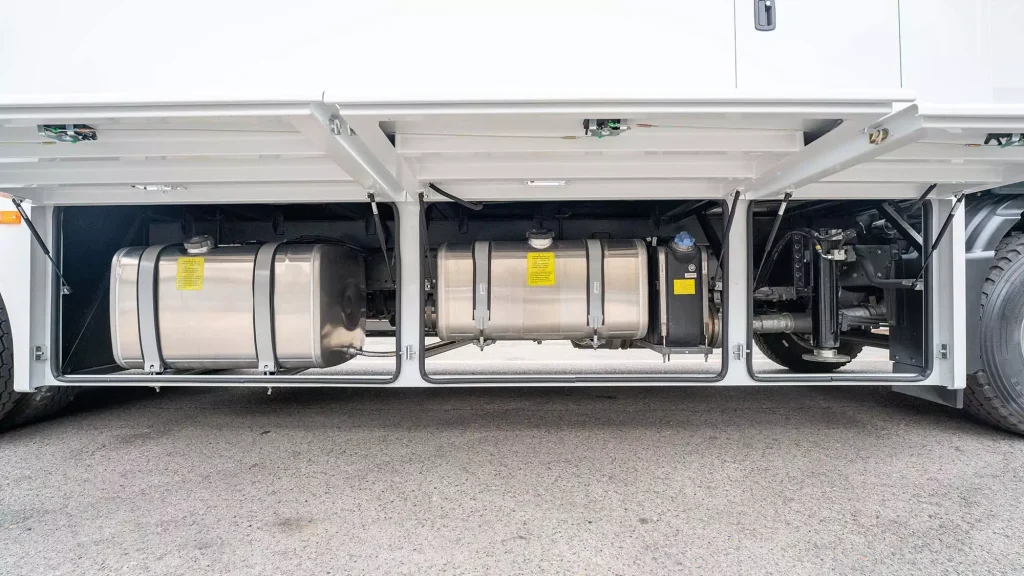

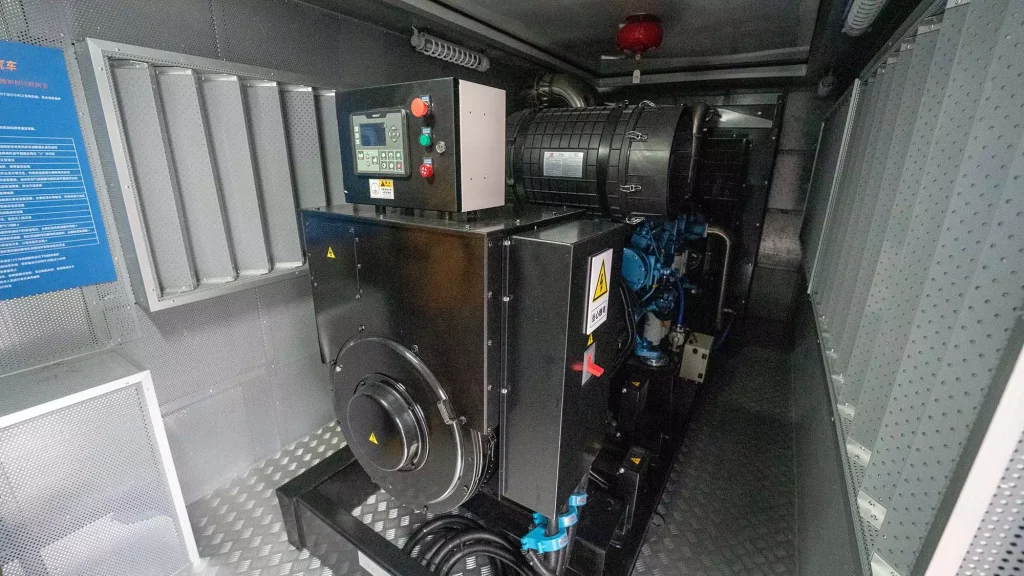

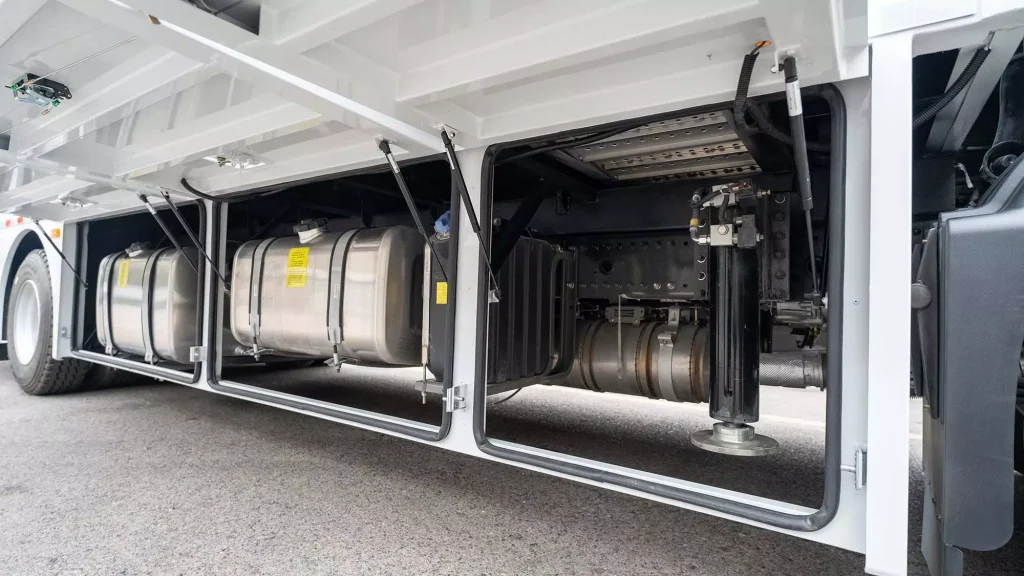

| Generator set: | 50-1000KW | Fuel Tank Self-Sustaining Capacity: | Meet the generator set continuous power supply ≥8h |

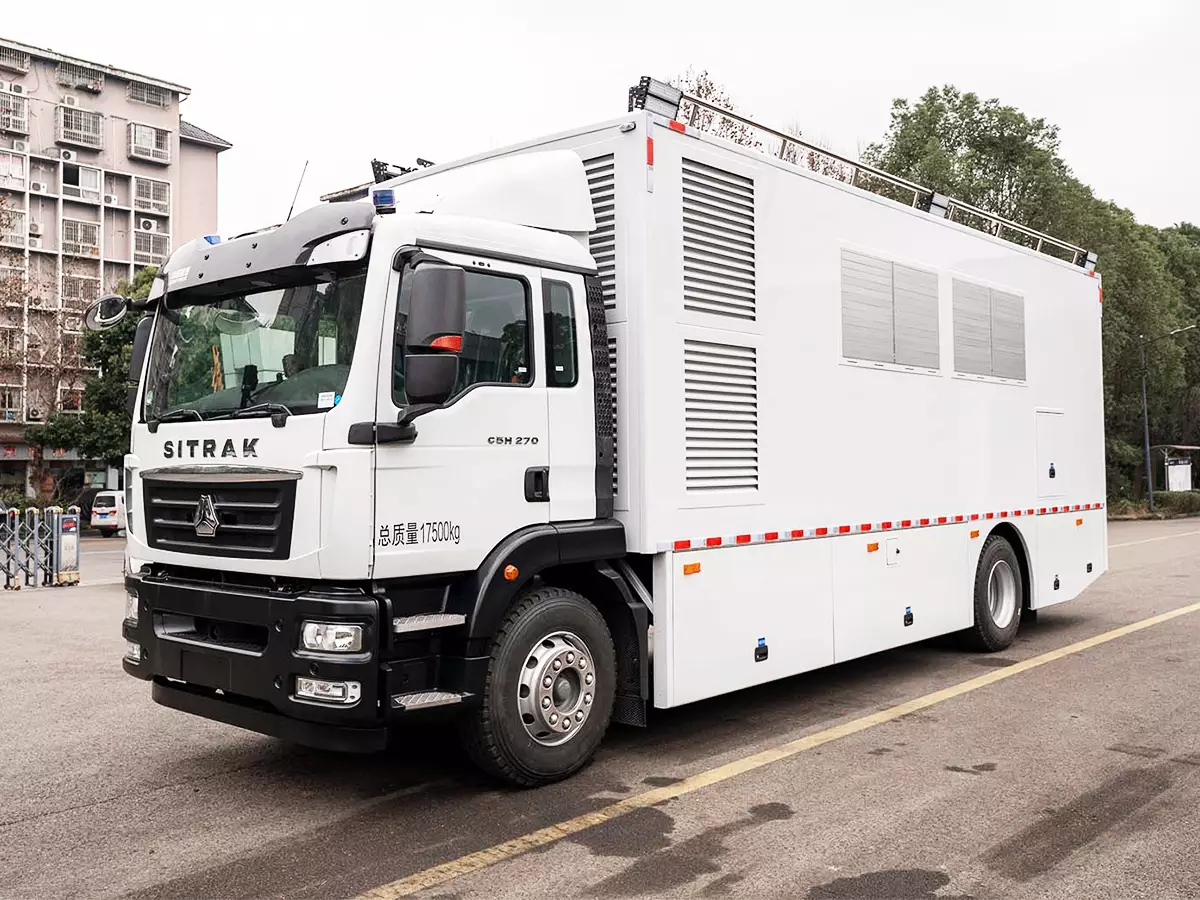

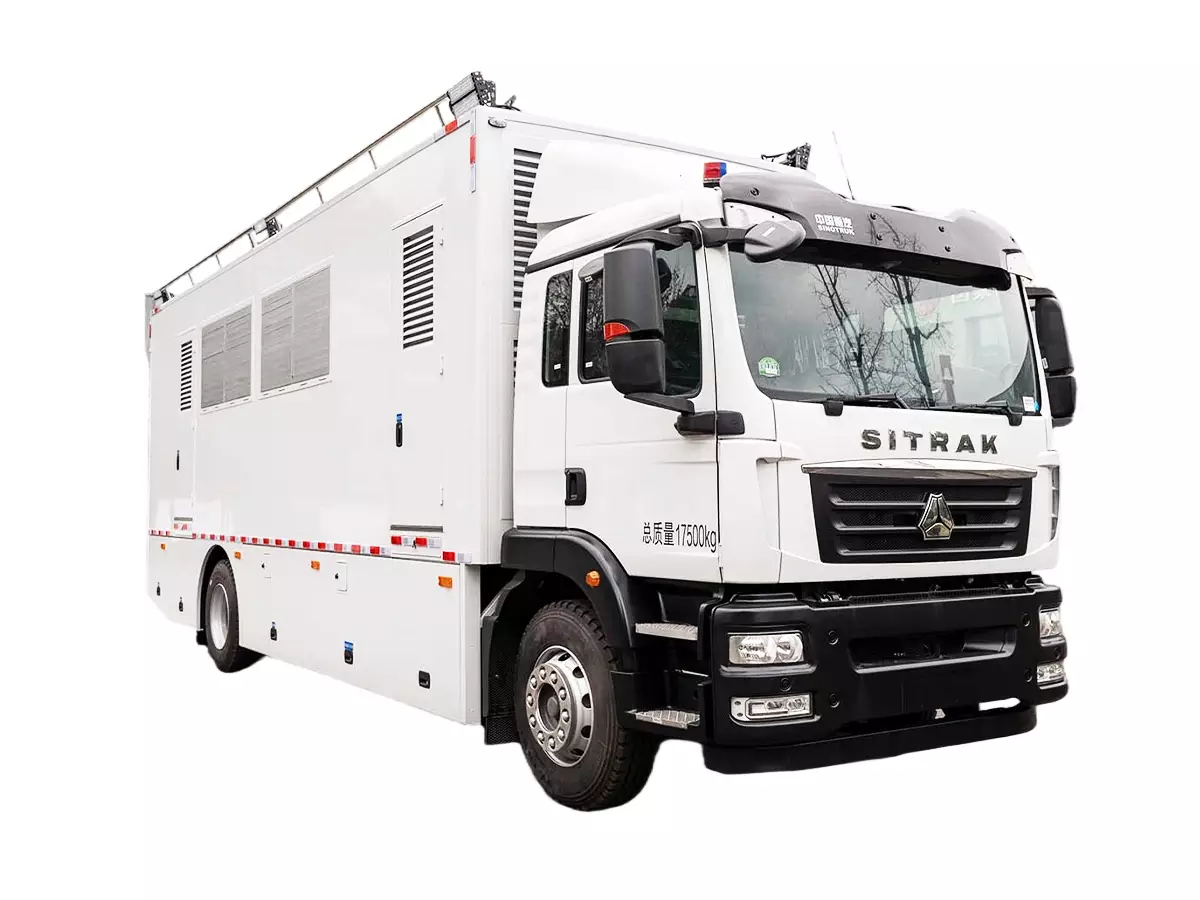

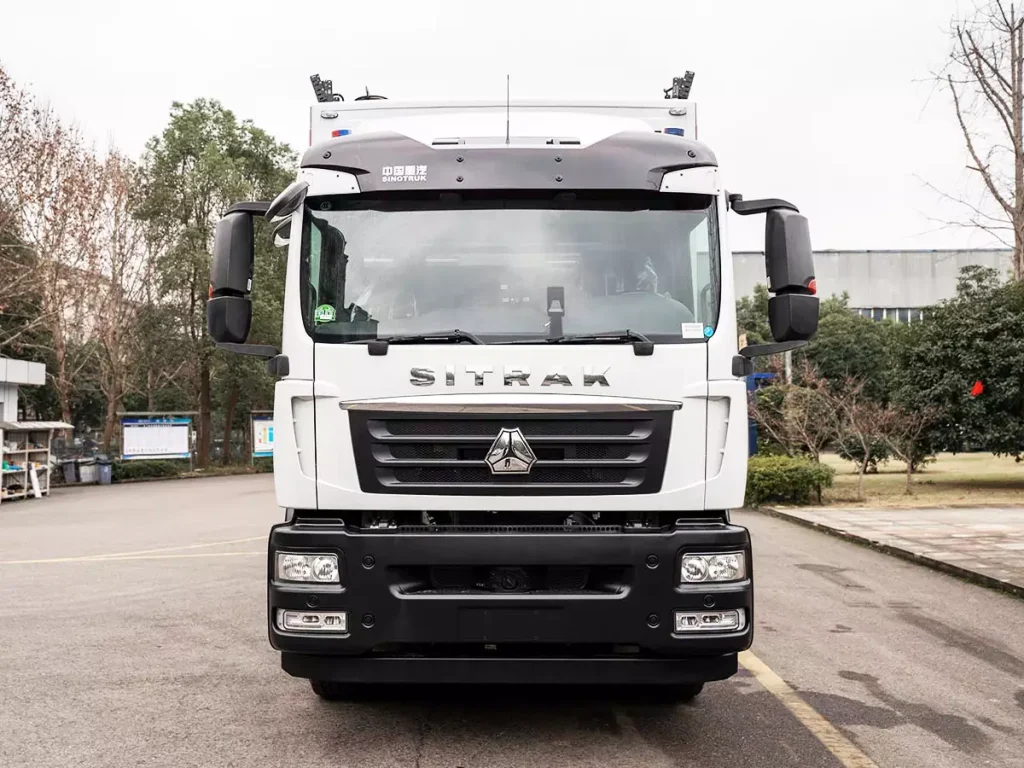

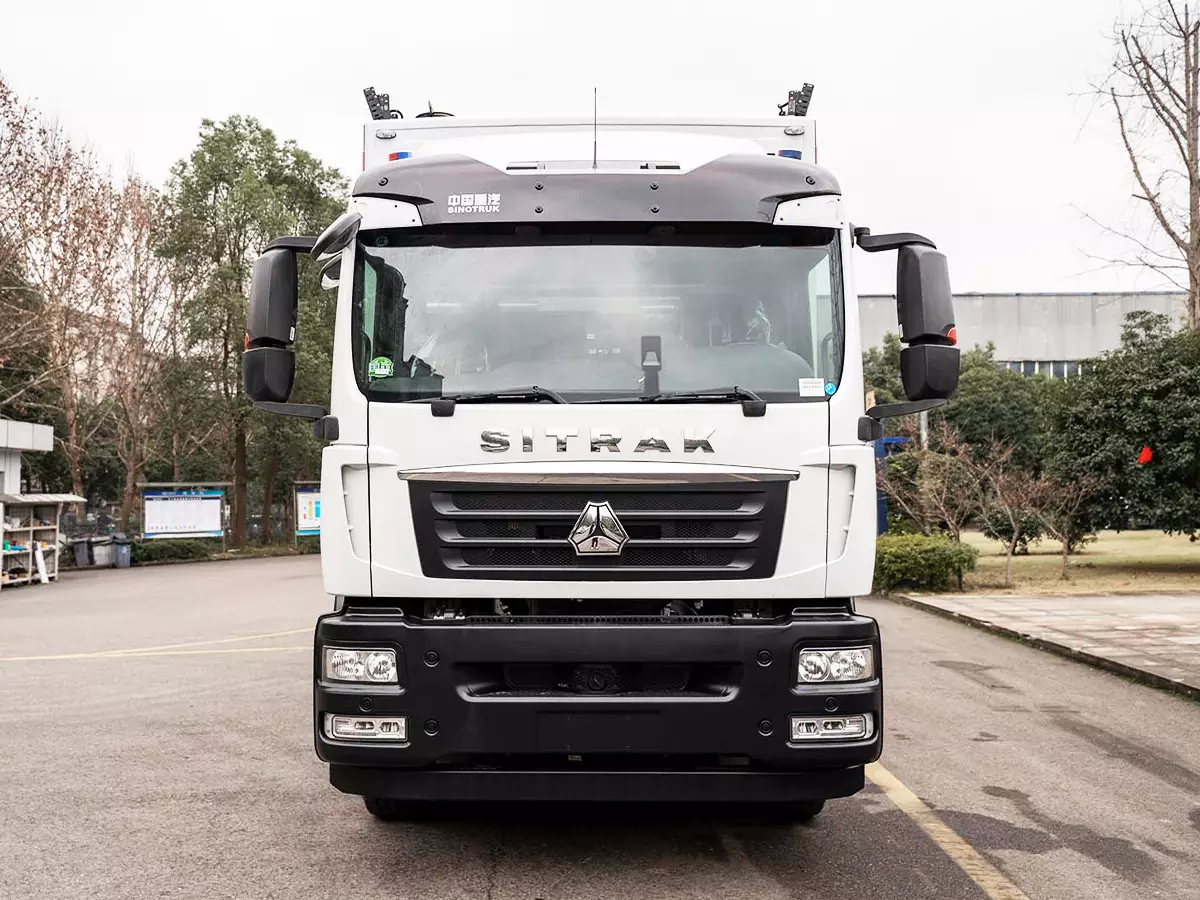

| Other chassis: | Ford pickup chassis, Sinotruk SITRAK commercial vehicle chassis |
