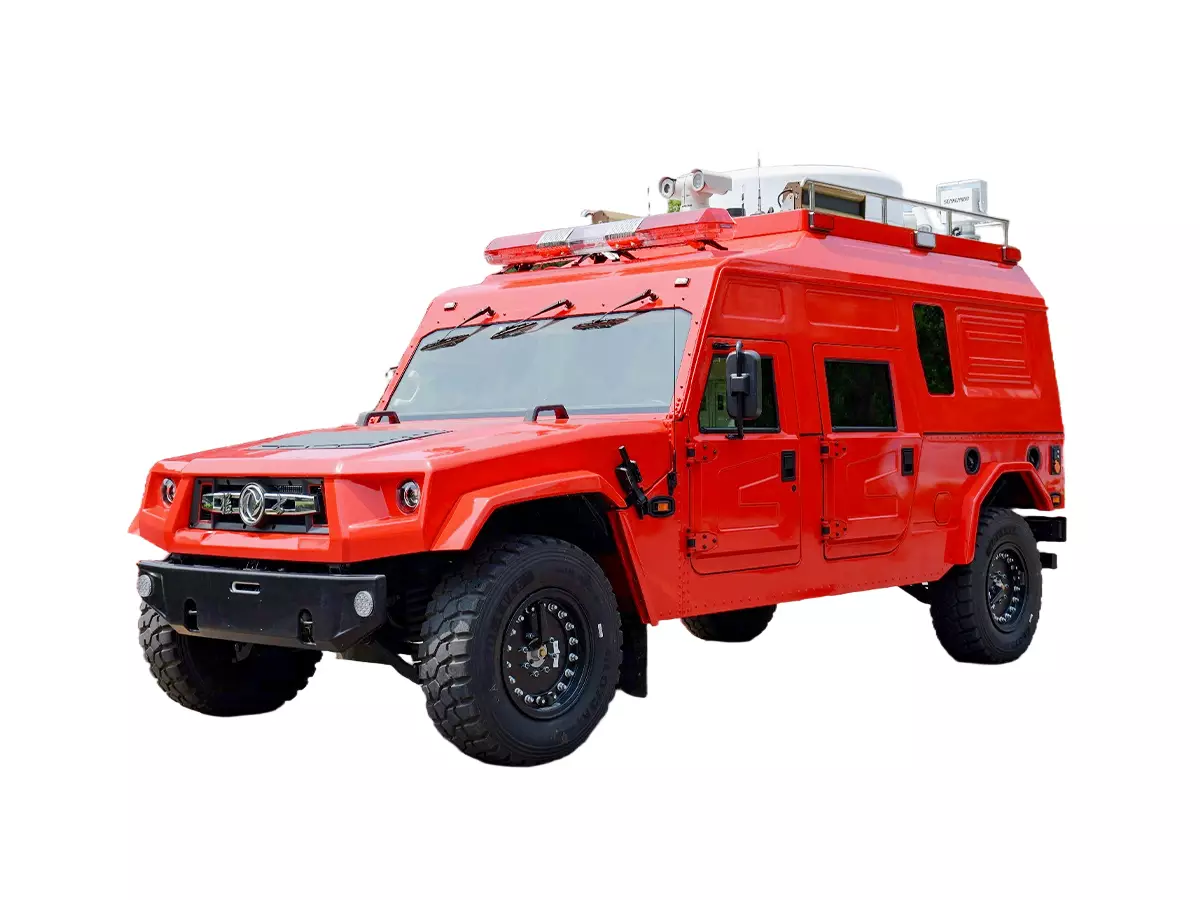

Mengshi Command Vehicle

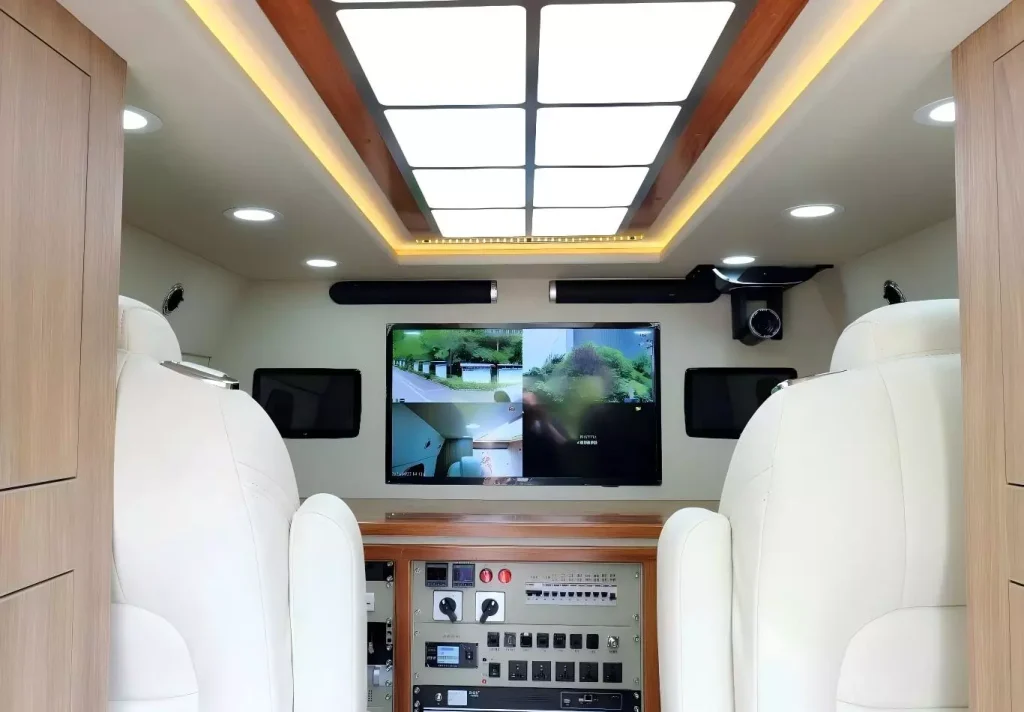

Main functions: 4K ultra-high-definition video conferencing; Vehicle- mounted audio and video system Audio and video integrated communication management platform On-site command and dispatch Vehicle- mounted office system Vehicle-mounted high-power lighting system Remote emergency broadcasting system Centralized control system Warning function; Logistical support function; Power supply and distribution system.
|
Maximum Speed (km/h): |
120 |
|---|---|
|
Displacement (L): |
4 |
|
Fuel type |
Diesel |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.
Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle Name: | Communication command vehicle | Announcement Model: | SLT5060XTXV2L |
| Chassis Brand: | Dongfeng Mengshi | Chassis Model: | CB339191100 |
| Cargo Box Dimensions (mm): | – | Overall Dimensions (mm): | CB339191100 |
| Total Mass (Kg): | 5750 | Curb Weight (Kg): | 5440×2310×2970 |
| Anti-lock Braking System: | Yes | Approach Angle/Departure Angle: | 5490 |
| Axle Load: | 2500/3250 | Front Overhang/Rear Overhang (mm): | 45/29(°) |
| Front Track: | 1880 | Rear Track Width: | 630/1010 |
| Drive Type: | 4×4 | Wheelbase: | 1850 |
| Maximum Speed (km/h): | 120 | Tires: | 3800 |
| Displacement (L): | 4 | Power/Horsepower: | 305/80R18 |
| Fuel Type: | Diesel | Emission Standard: | 143(kw)/195(PS) |
| Maximum Gradeability: | 60% | Minimum Turning Radius: | China VI |
| Hill Hold Capability: | 40% | Wading Depth: | 8.5mm |
| Number of Participants: | 4-5 persons | ||
| Functional System | UAV system, satellite communication system, conference system, audio/video system, centralized control system, computer/network equipment, power supply system, lighting system | ||
