ZY-XF50

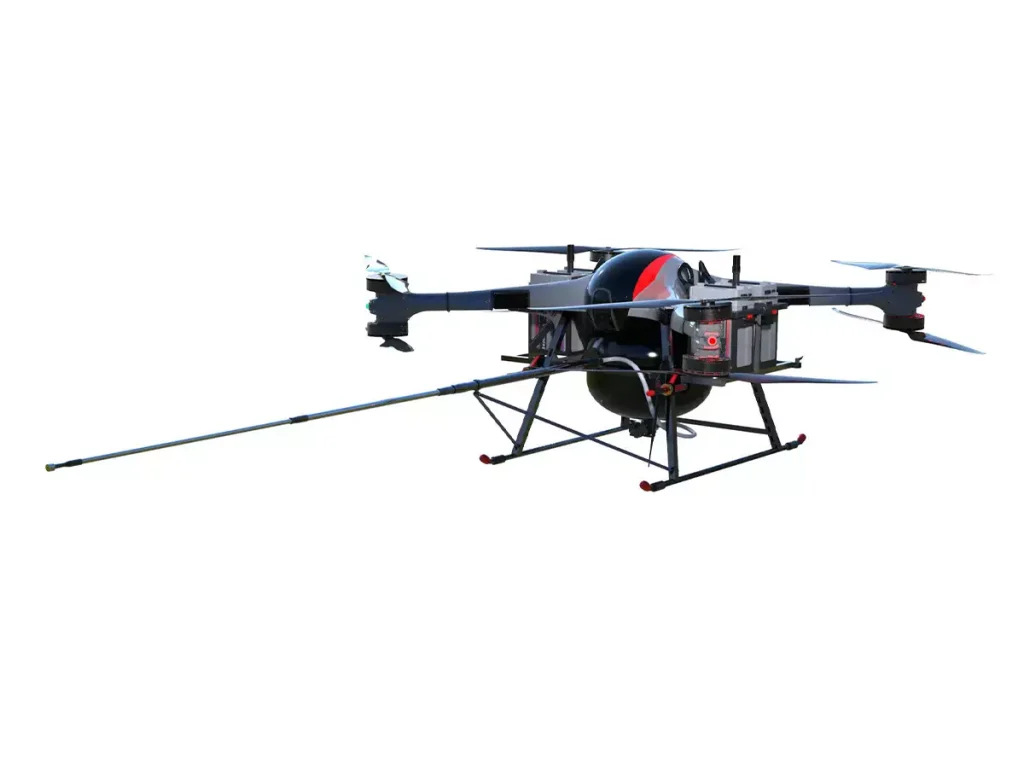

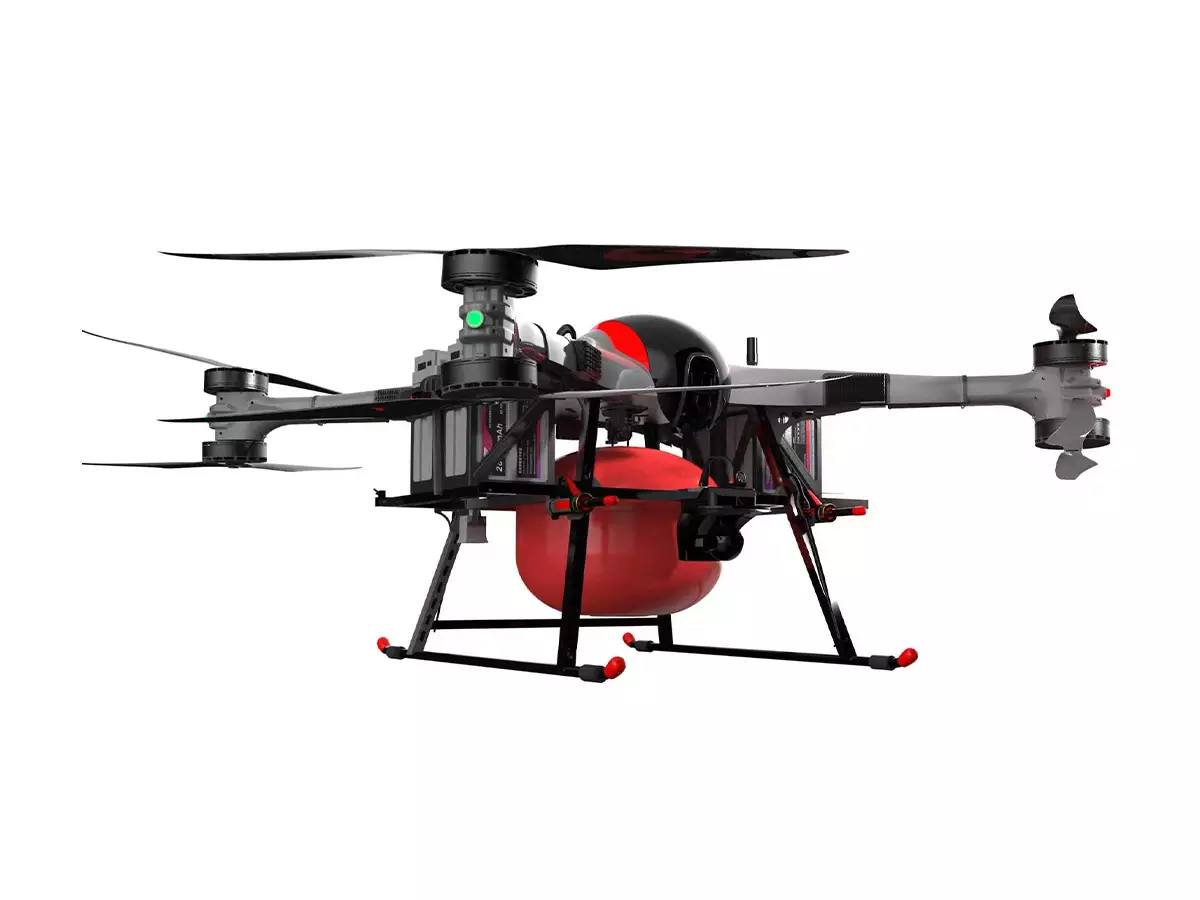

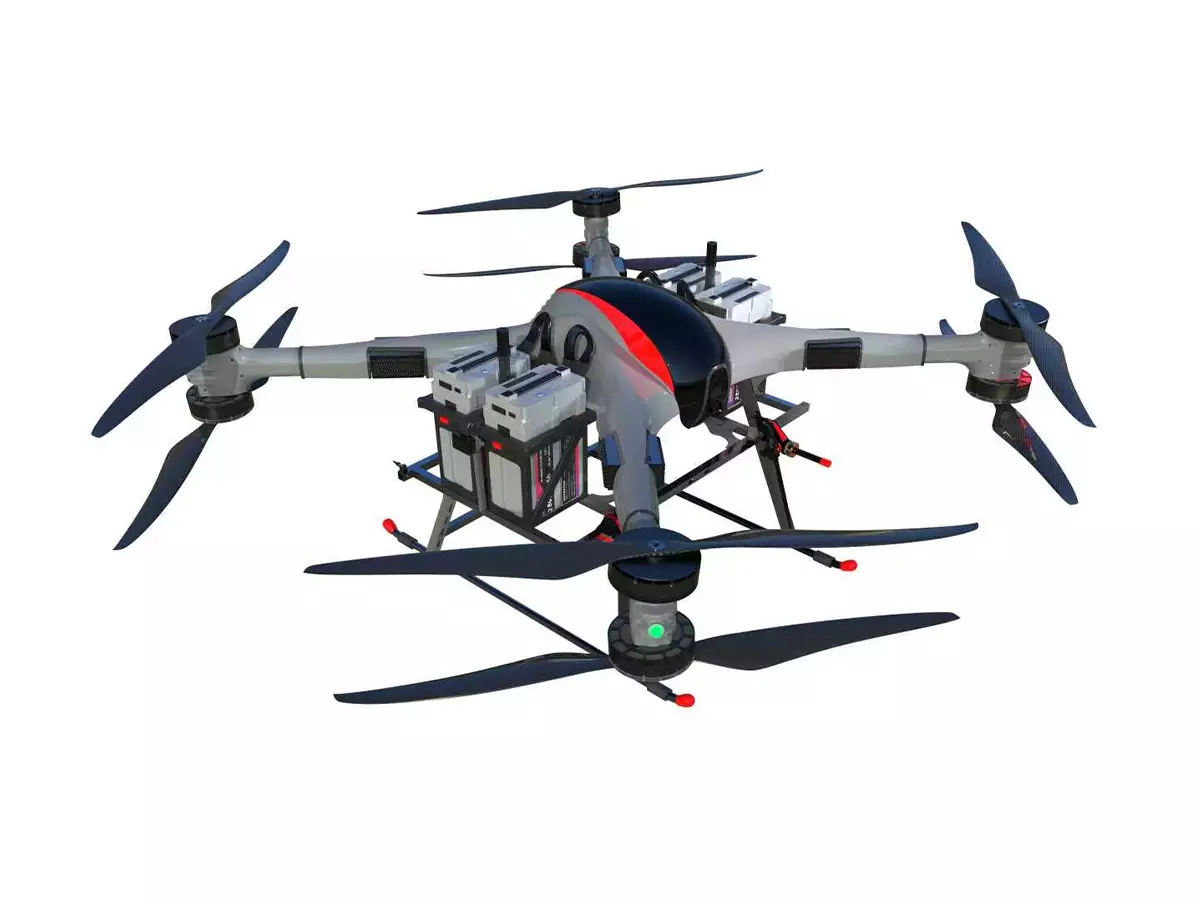

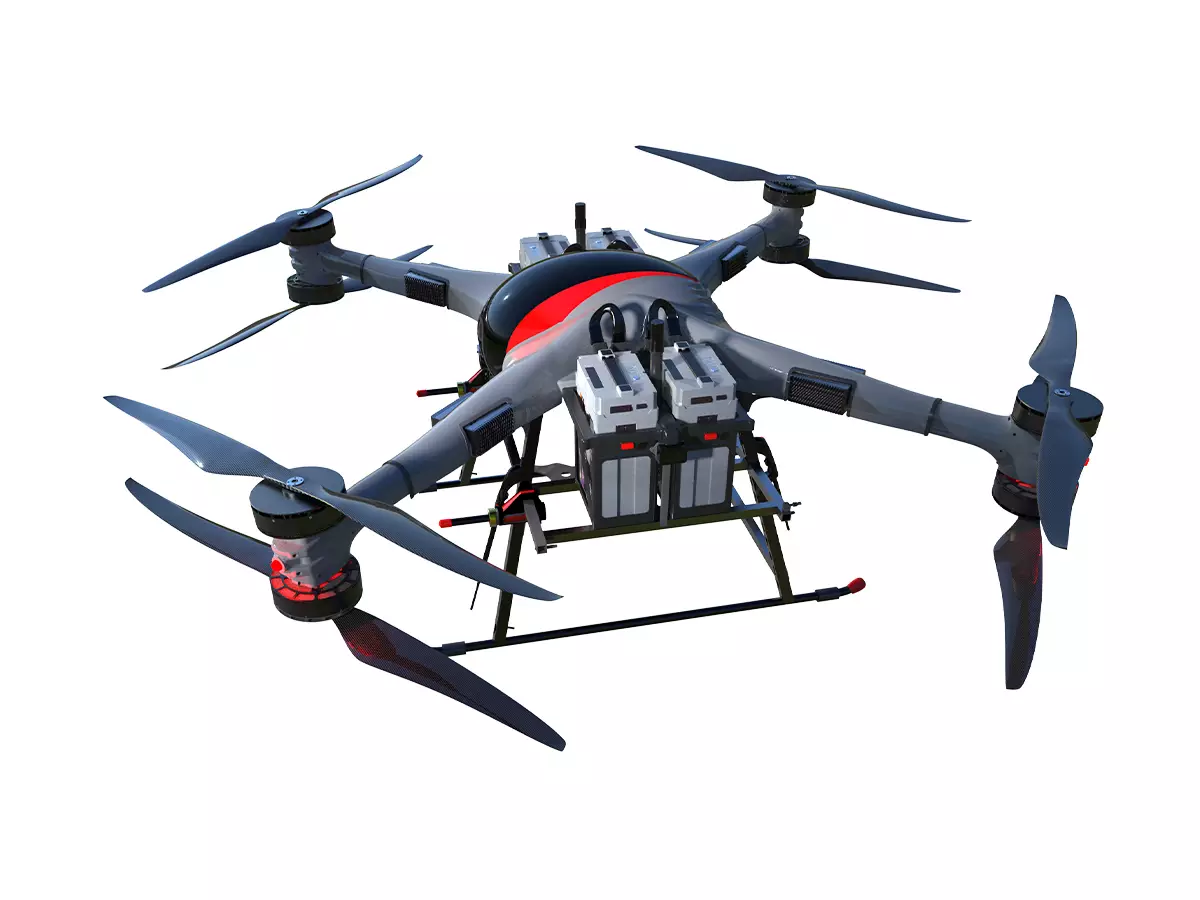

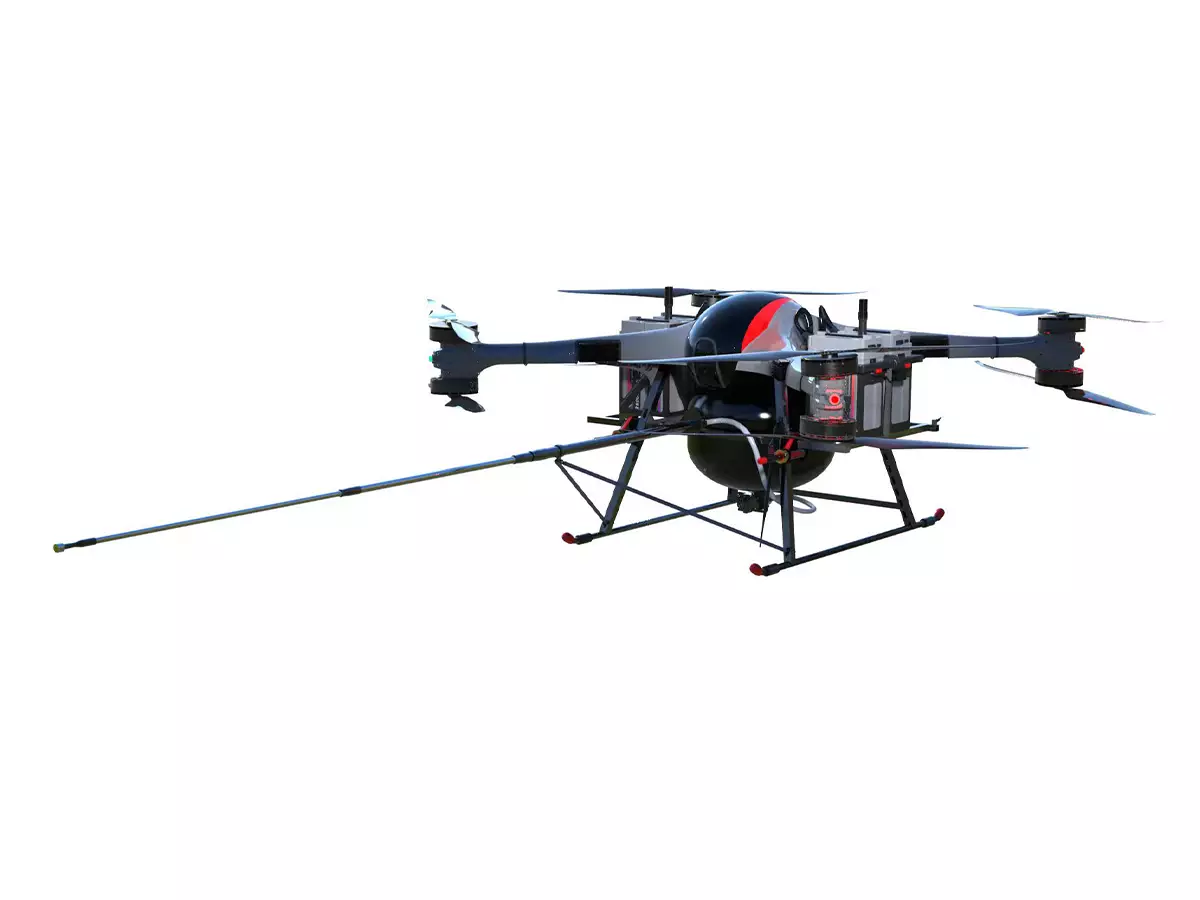

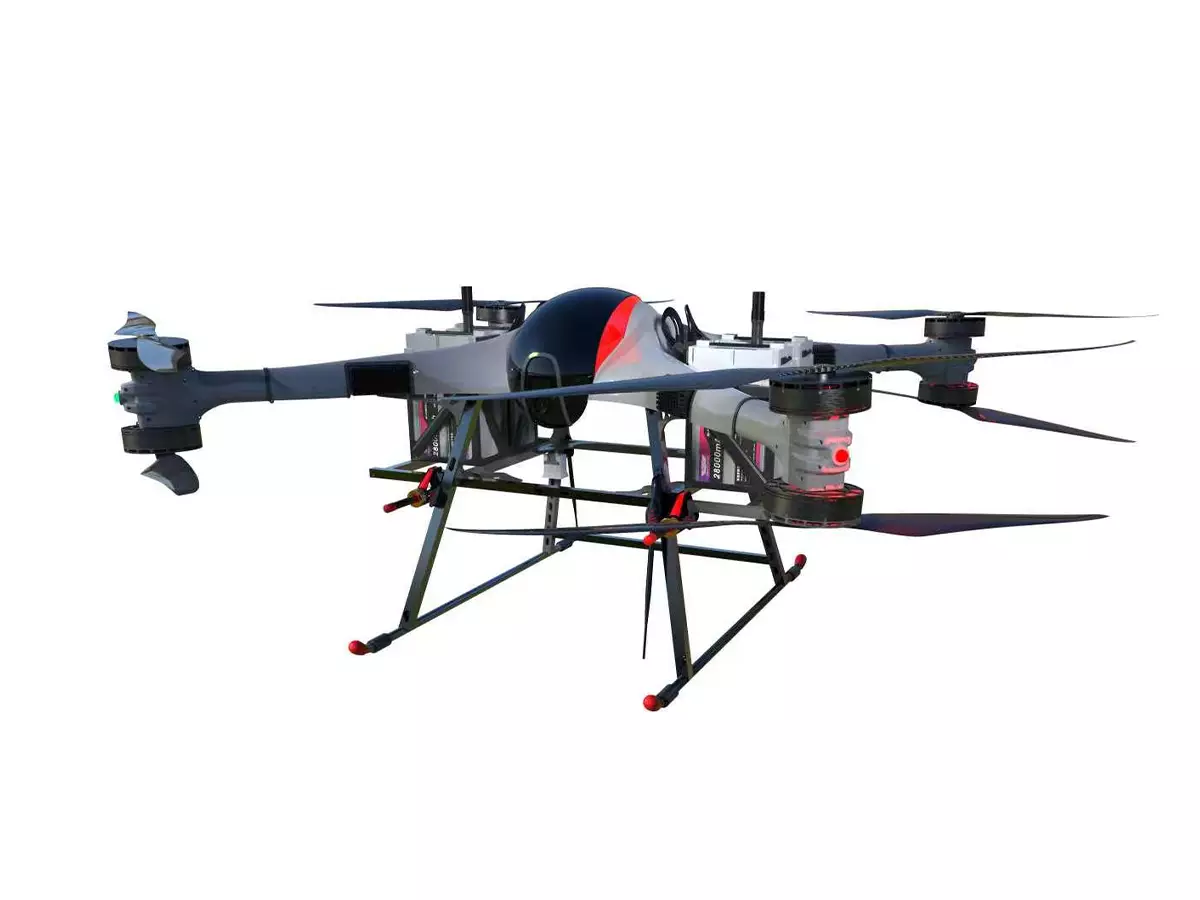

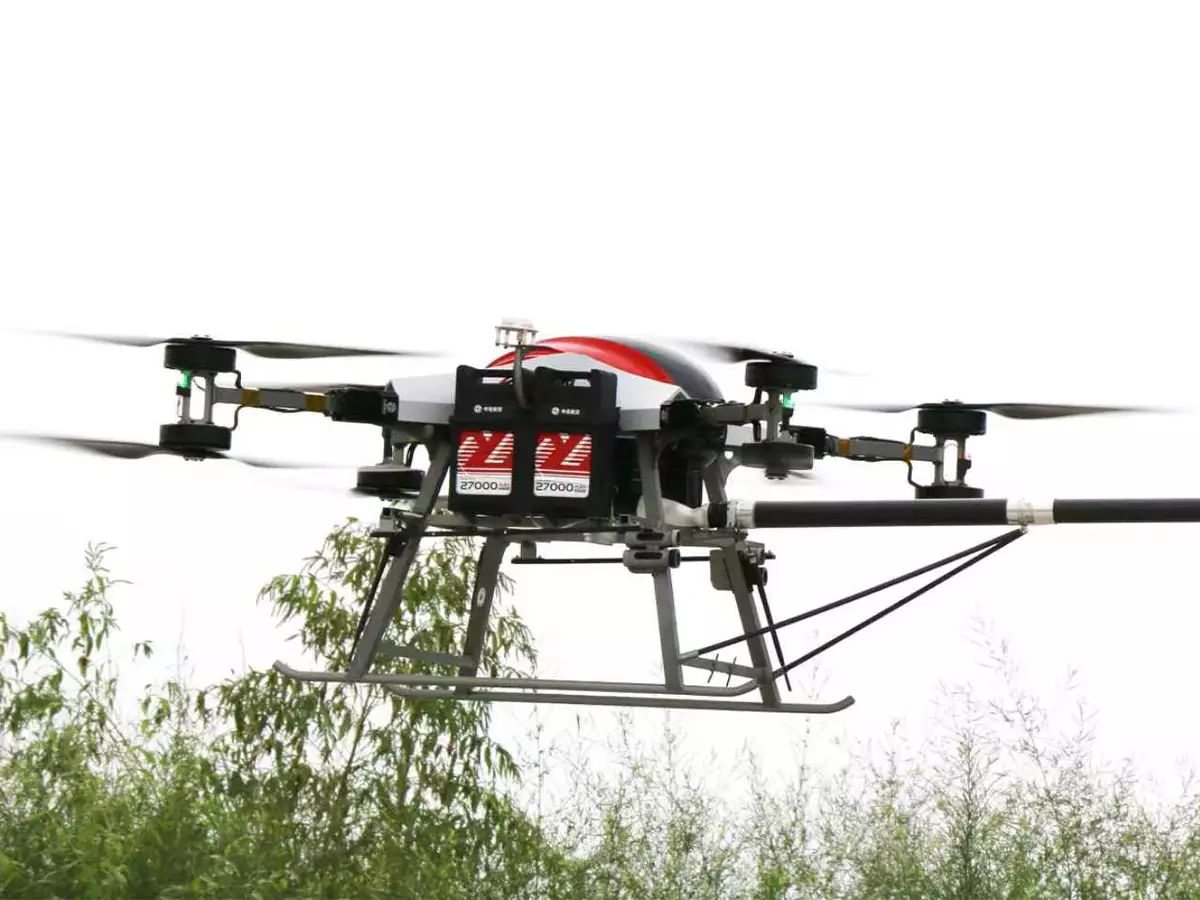

This four‑axis‑eight‑propeller fire‑fighting UAV adopts battery power supply. Expand size 2738×2738×690 mm, fold size 1030×1405×690 mm. Equipped with 8 sets of 30000 mAh batteries. Standard payload 50 kg, max payload 80 kg. Endurance: 60 min(no‑load), 35 min(standard‑load). Max operation radius 10 km. Supports multi‑mounting tasks including window‑breaking bomb, rescue bomb, fire hose, dry‑powder projectile and fire‑water unit. It can carry projectile fire‑extinguishing bomb, pressure‑storage fire tank and rescue bombs, widely used for high‑rise building fire emergency response.
|
Expanded size |
2738x2738x690(mm) |
|---|---|
|
Power model |
Power battery |
|
Battery specifications |
30000mAh*8 |
Heavy-Lift Capability
High payload capacity supports the transportation and deployment of firefighting and rescue equipment.
Extended Flight Endurance
High-capacity battery systems provide extended flight time for sustained emergency operations.

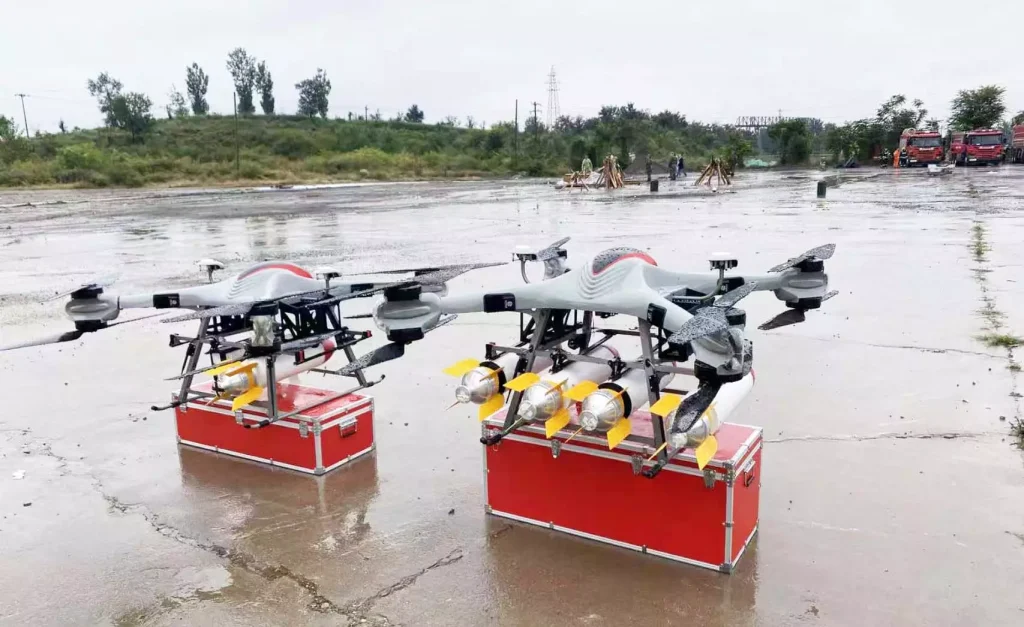

Multi-Mission Payloads
Compatible with multiple mission payloads, including firefighting, rescue, water supply, and window-breaking equipment.
Long-Range Operations
Designed for remote aerial operations, providing an extended working radius for accessing difficult or hazardous areas.
High-Rise Fire Response
Built for high-rise firefighting and emergency rescue, enabling aerial access where conventional equipment may face operational limitations.
| Number of paddle shafts | Four axes and eight propellers |
| Expanded size | 2738x2738x690(mm) |
| Folding size | 1030x1405x690(mm) |
| Power mode | Power battery |
| Battery specifications | 30000mAh*8 |
| Standard mission load | 50KG |
| Maximucapension load | 80KG |
| No-load endurance time | 60min |
| Standard-load endurance | 35min |

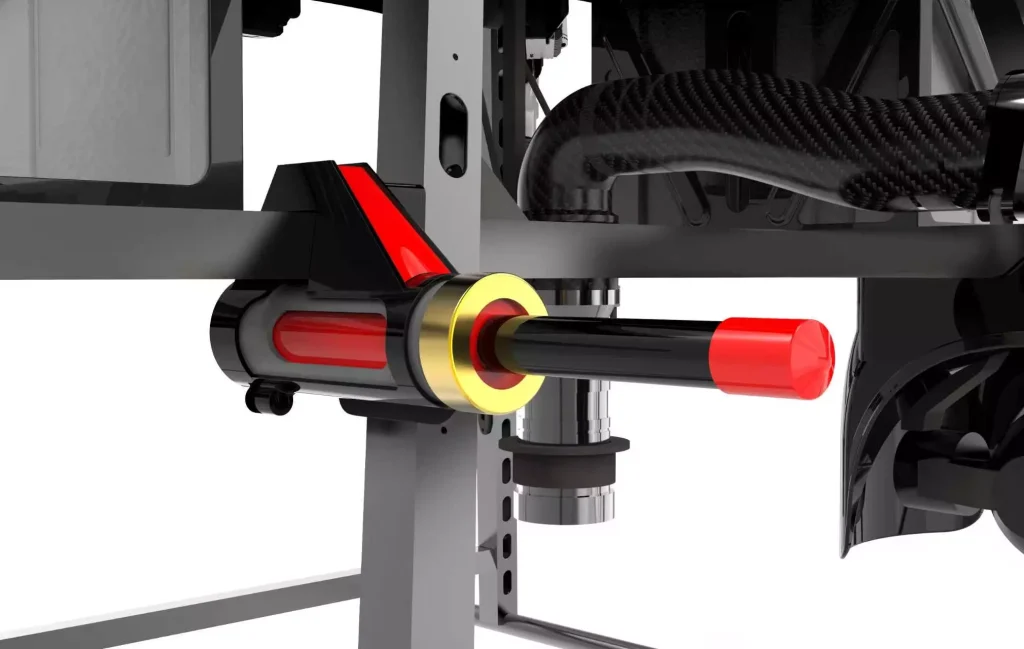

| Mount mode | Window-breaking bomb/Material rescue bomb/water hose release |
| Projectile/dry powder projectile/fire water with mounting | |
| Maximum operating radius | 10KM |
| Operating height of water hose | 120M |
| Working height of the pressure storage tank | 200M |
| The mounting of projectile fire extinguishing bombs | 1 |
| The pressure storage fire extinguishing tank is mounted | 1 |
| The number of rescue bombs carried | 2 |
