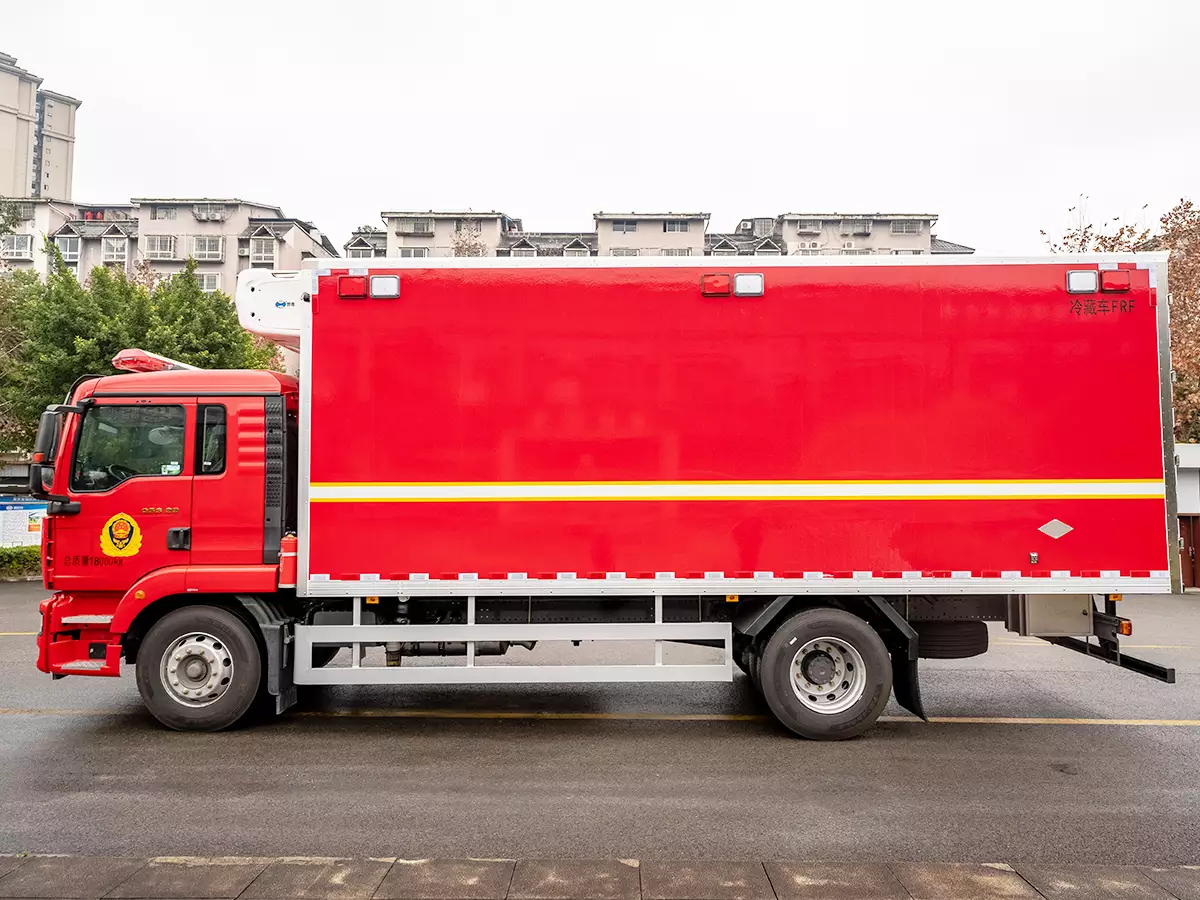

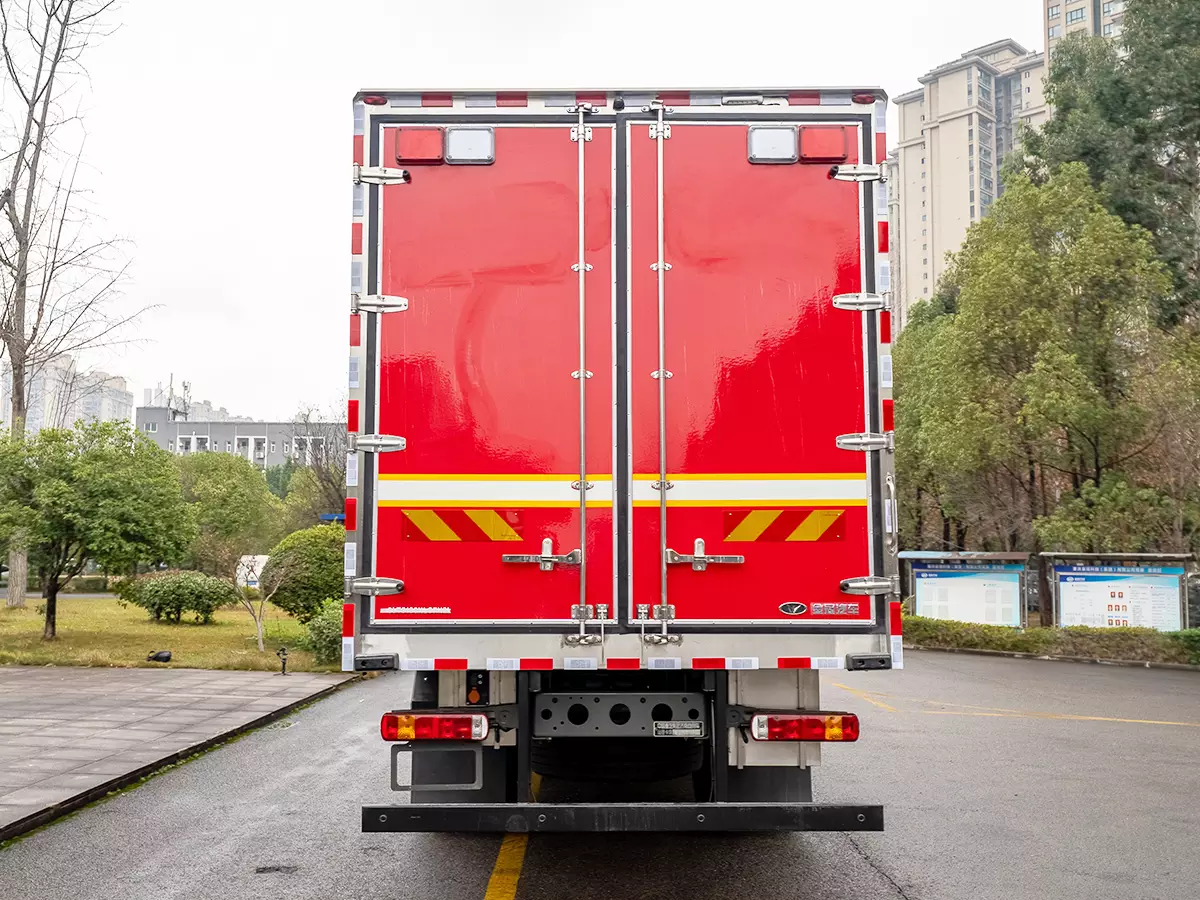

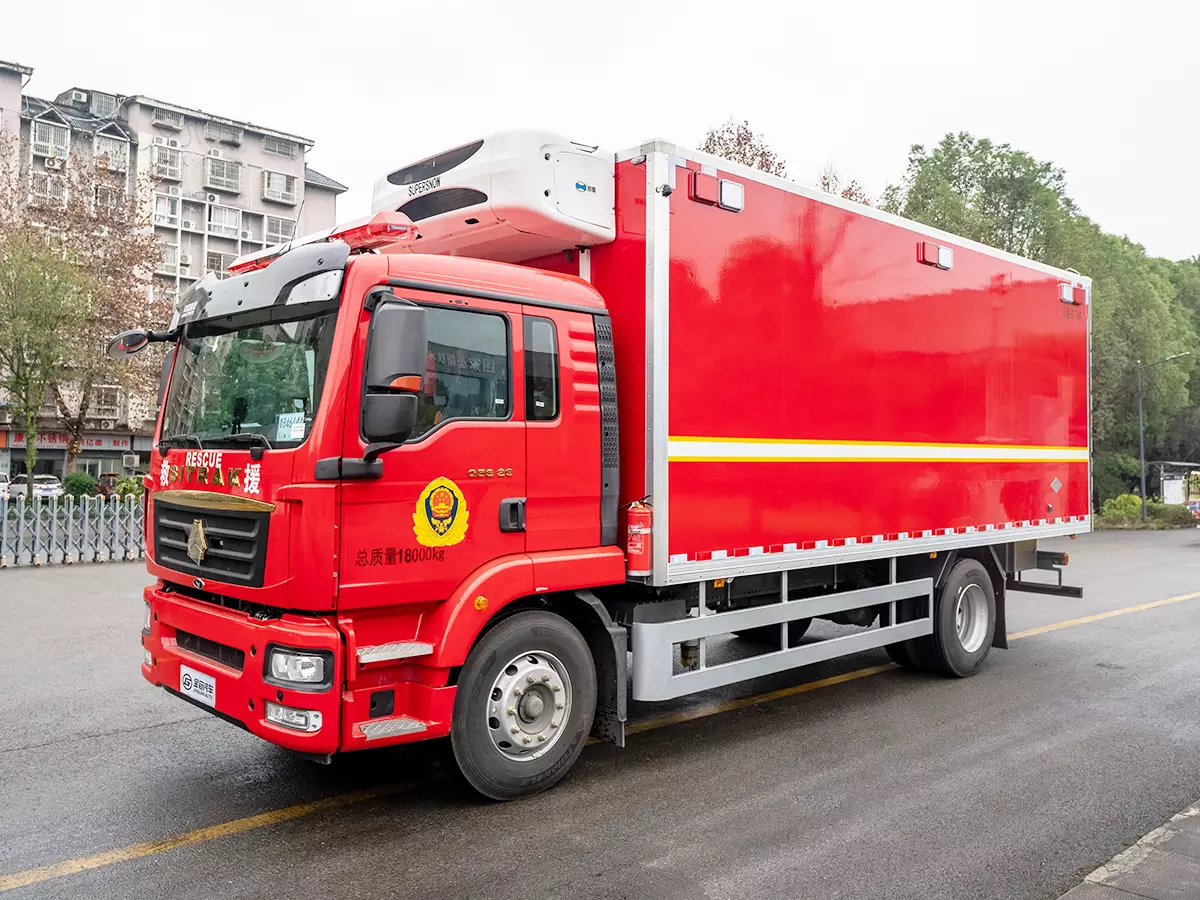

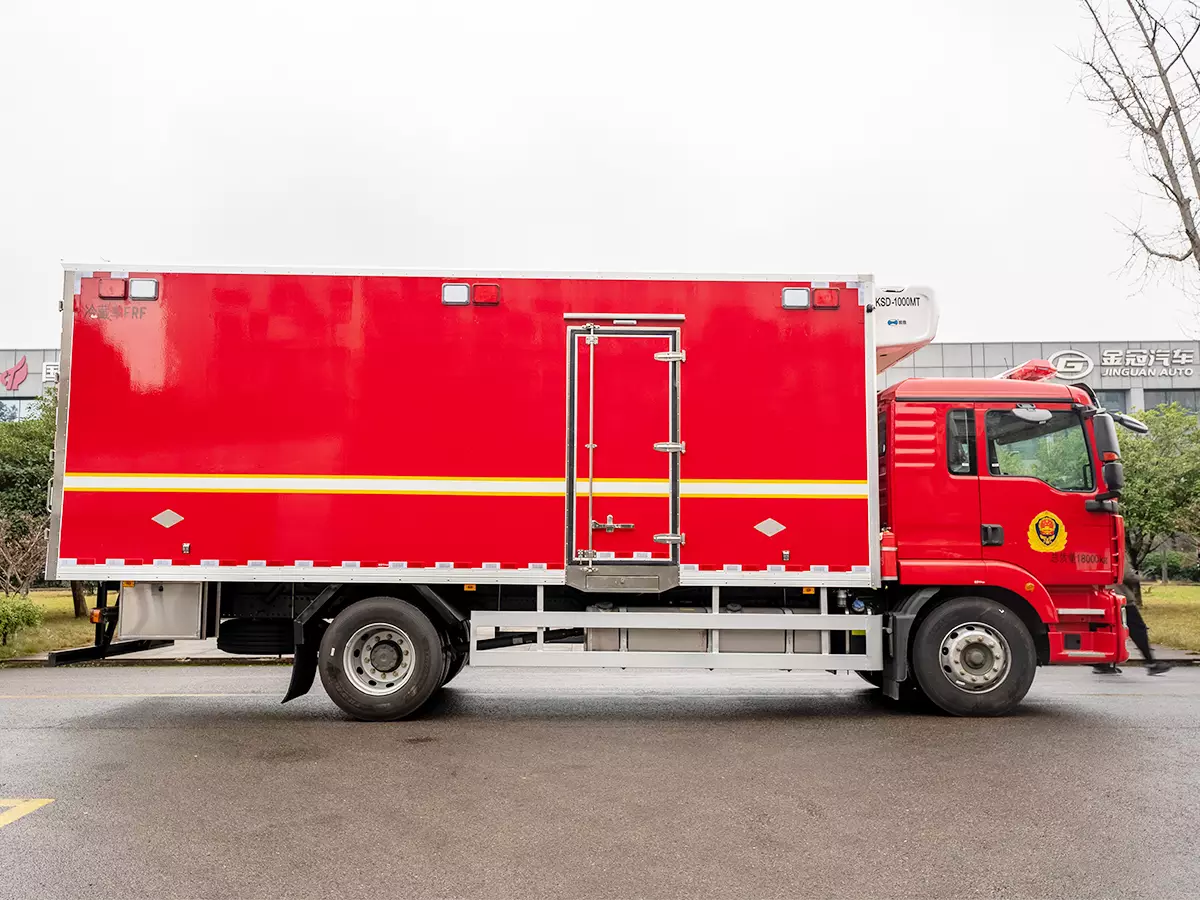

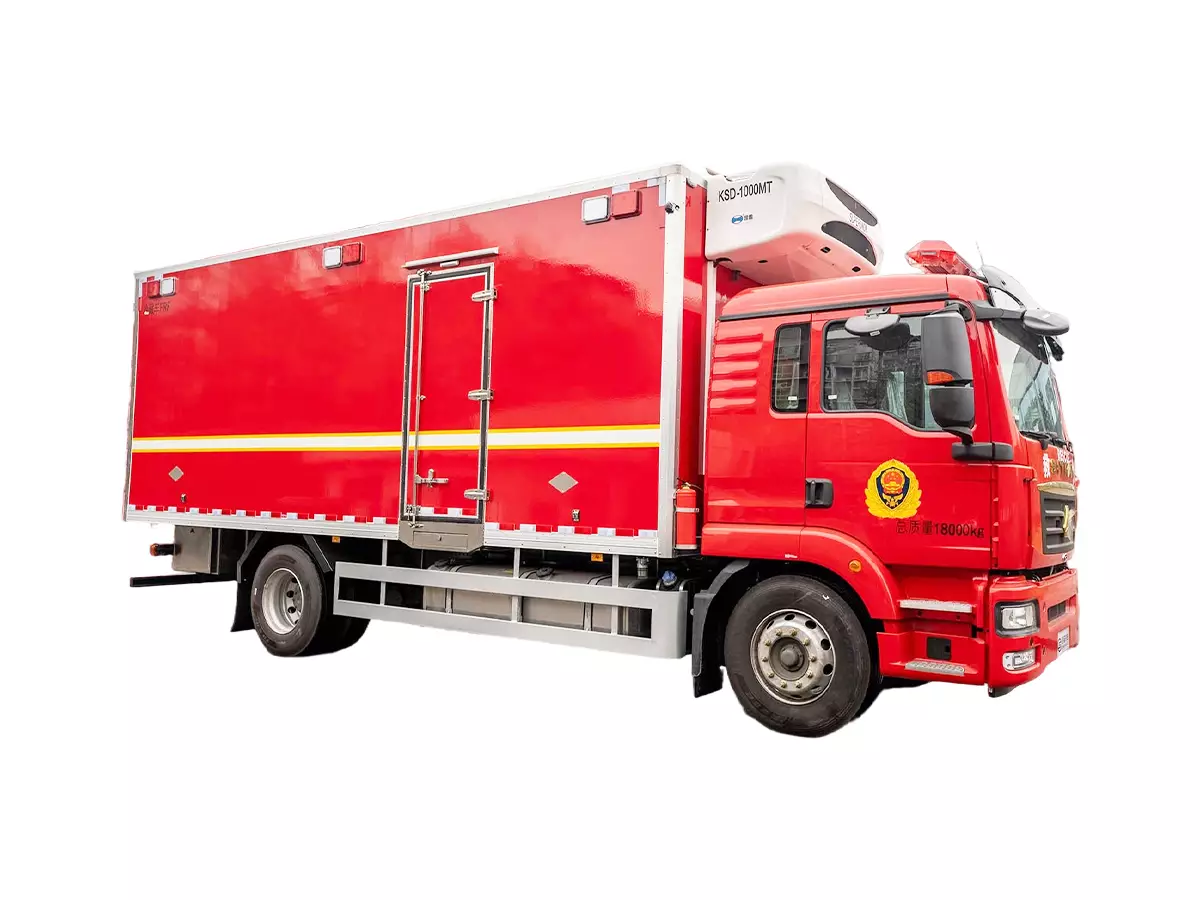

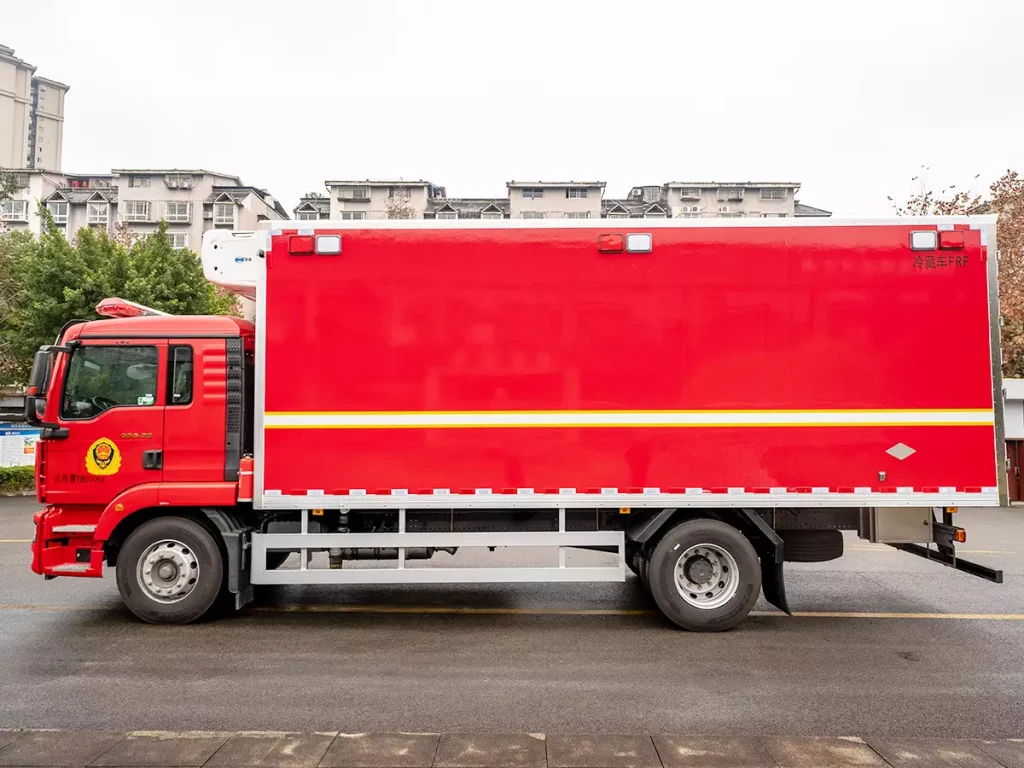

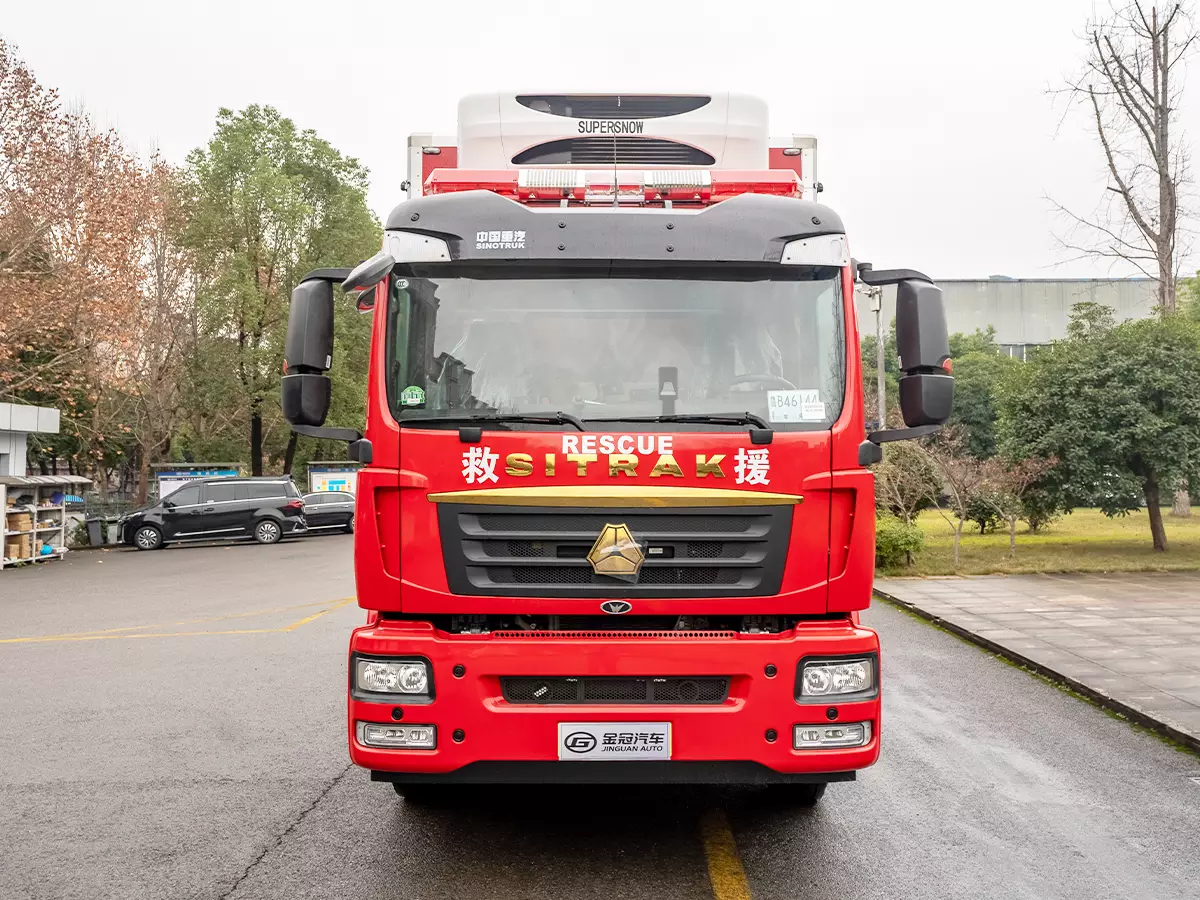

Refrigerated Truck
Field logistical support vehicle series: camp, catering, shower, water‑purification, bedding‑washing, hand‑washing, power‑supply, lighting and refrigerated vehicles. Modular customized body, self‑contained water & power system, for emergency rescue and field mission support.
|
Maximum Speed (km/h): |
89 |
|---|---|
|
Displacement (L): |
6.87 |
|
Fuel type |
Diesel |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.
Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle Name: | Refrigerated truck | Announcement model: | SLT5180XLCFH2L |
| Chassis Brand: | Sinotruk | Chassis Model: | ZZ1186K501GF1 |
| Cargo Box Dimensions (mm): | 6750×2370×2420 | Overall Dimensions (mm): | 9170×2550×3910 |
| Total mass (Kg): | 18000 | Curb Weight (Kg): | 8600 |
| Anti-lock braking system: | Yes | Approach/Departure Angle: | 16/10(°) |
| Axle load: | 6500/11500 | Front/Rear Overhang (mm): | 1450/2720 |
| Front track: | 1998 | Rear Track: | 1850 |
| Drive form: | 4×2 | Wheelbase: | 5000 |
| Maximum speed (km/h): | 89 | Tires: | 295/80R22.5 |
| Displacement (L): | 6.87 | Power/Horsepower: | 213(kw)/290(PS) |
| Fuel type: | Diesel | Emission Standard: | China VI |

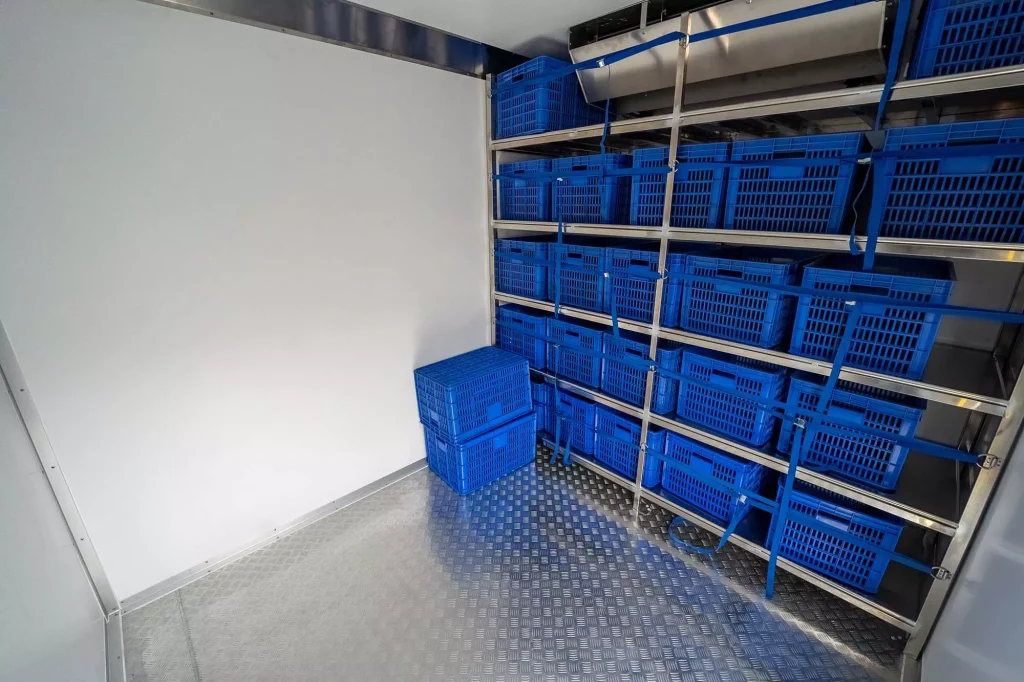

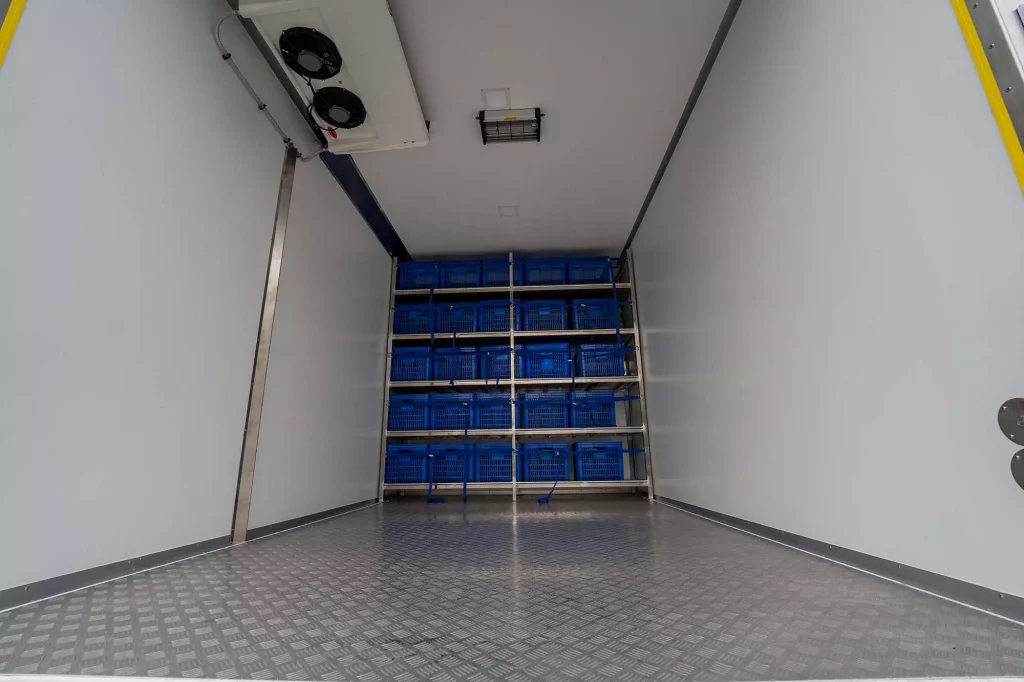

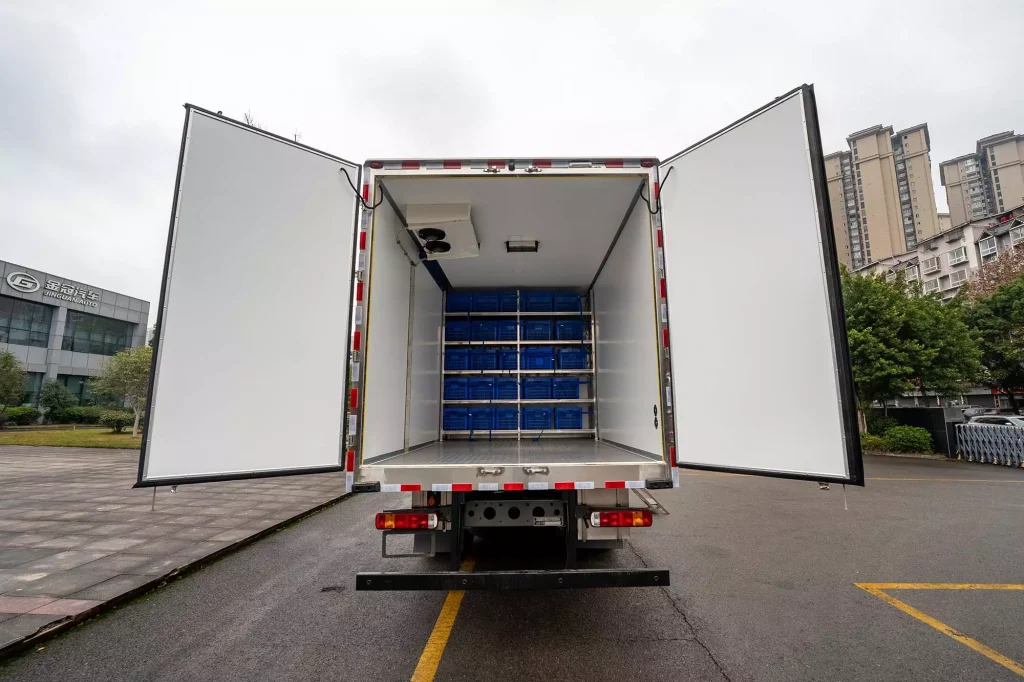

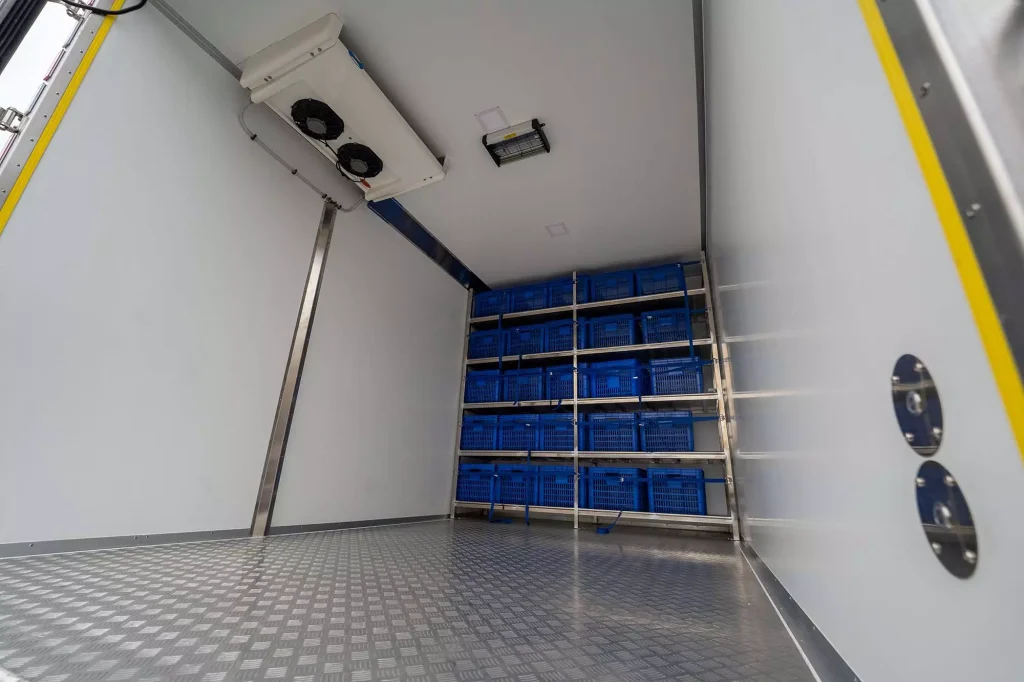

| Freezing zone: | ≥16m³, adjust -20℃ to 30℃ | Refrigerated Area: | ≥22m³, -20℃-30℃ adjustment |
