ZY-XF100

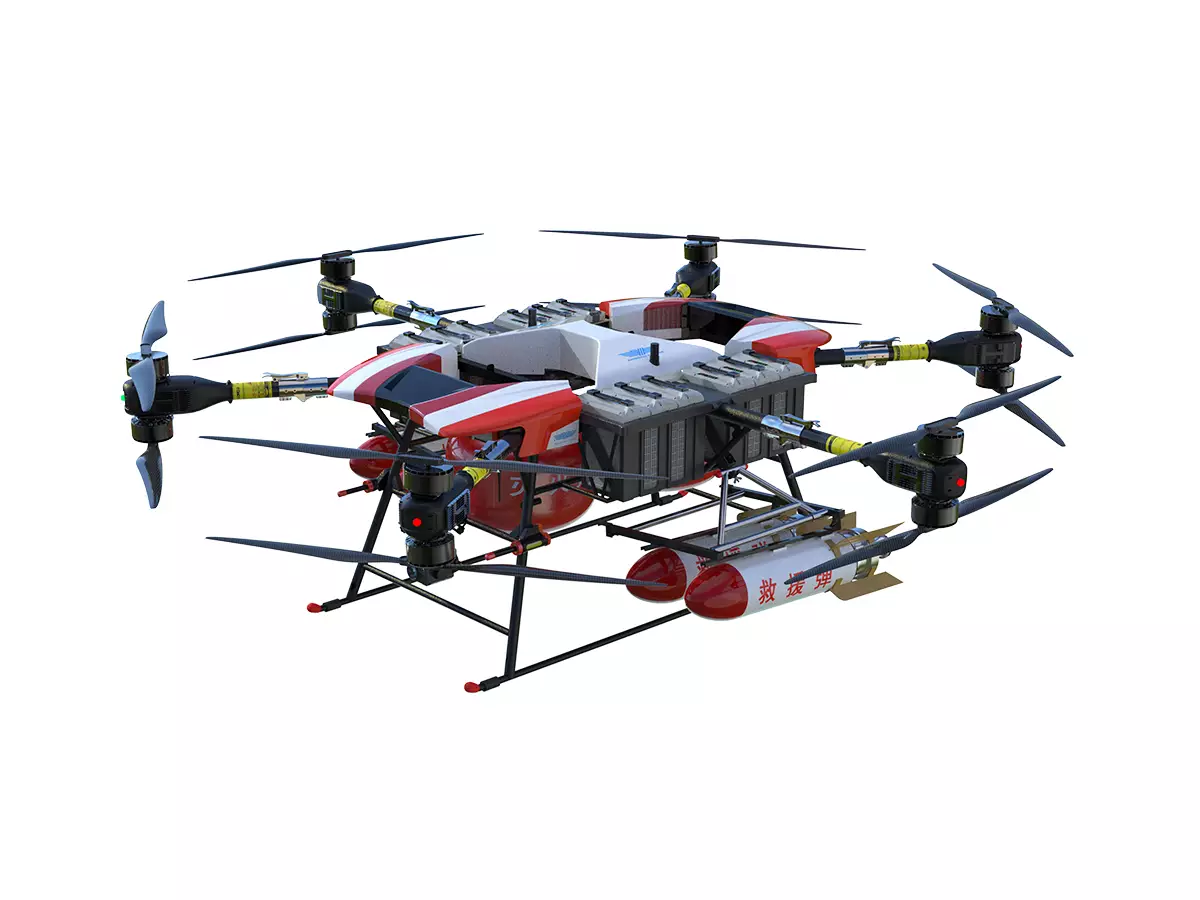

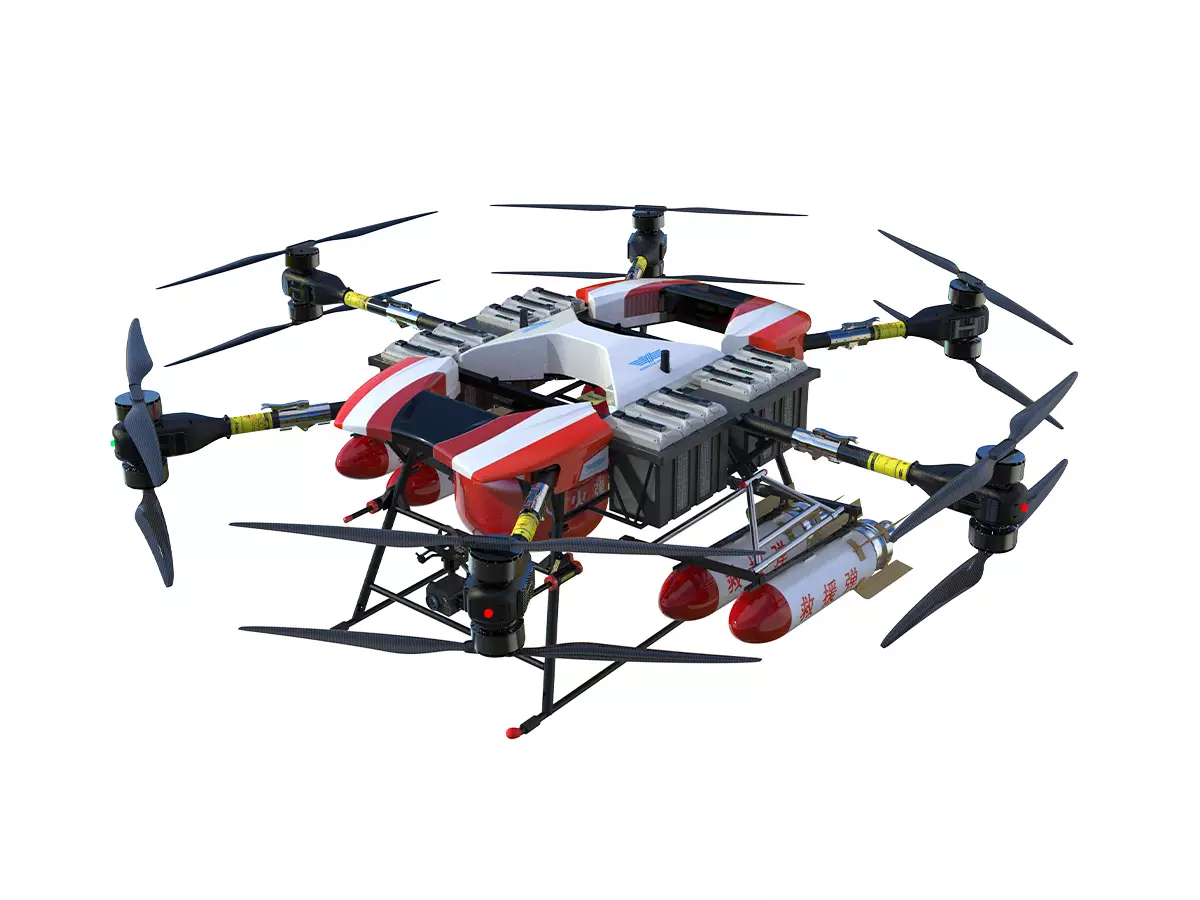

This six‑axis‑twelve‑propeller heavy‑duty fire‑fighting UAV is battery‑powered. Expanded dimension 3835×3485×835 mm, folded dimension 1950×1950×835 mm, equipped with 12 sets of 30000 mAh batteries. Standard payload 100 kg, maximum payload up to 200 kg. Endurance: 60 min under no‑load condition, 20 min under standard‑load condition. Max operating radius reaches 10 km. It supports multiple mission payloads: window‑breaking bomb, rescue bomb, dry‑powder projectile, fire‑hose assembly and water supply unit. Capable of carrying projectile fire‑extinguishing bombs, pressure‑storage fire tanks and rescue bombs, specially designed for high‑rise building fire fighting and emergency rescue missions.
|
Expanded size |
3835x3485x835(mm) |
|---|---|
|
Power model |
Power battery |
|
Battery specifications |
30000mAhx12 |
Heavy-Lift Capability
High payload capacity supports the transportation and deployment of firefighting and rescue equipment.
Extended Flight Endurance
High-capacity battery systems provide extended flight time for sustained emergency operations.
Multi-Mission Payloads
Compatible with multiple mission payloads, including firefighting, rescue, water supply, and window-breaking equipment.
Long-Range Operations
Designed for remote aerial operations, providing an extended working radius for accessing difficult or hazardous areas.
High-Rise Fire Response
Built for high-rise firefighting and emergency rescue, enabling aerial access where conventional equipment may face operational limitations.
| Number of paddle shafts | Six axes and twelve propellers |
| Expanded size | 3835x3485x835(mm) |

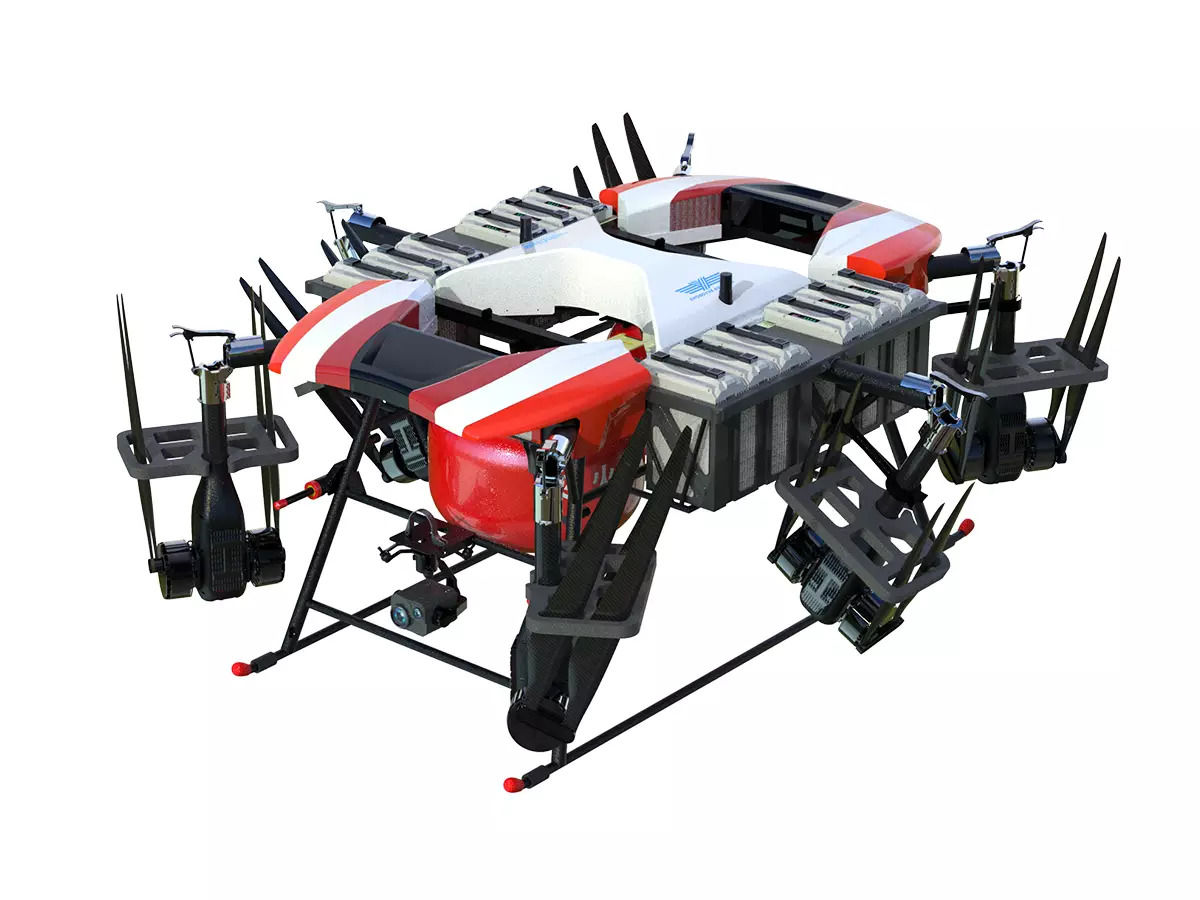

| Folding size | 1950x1950x835(mm) |
| Power model | Power battery |
| Battery specifications | 30000mAhx12 |
| Standard mission load | 100KG |
| Maximum mission load capacity | 200KG |
| No-load endurance time | 60min |
| Standard-load endurance | 20min |
| Mount mode | Window-breaking bomb/Material rescue bomb/water |
| With projectiles/drop dry powder projectiles/fire hose mounting | |
| Maximum operating radius | 10KM |
| Operating height of water hose | 200M |
| Working height of the pressure storage tank | 300M |
| The mounting of projectile fire extinguishing bombs | 2 |
| The pressure storage fire extinguishing tank is mounted | 2 |
| The number of rescue bombs carried | 4 |
