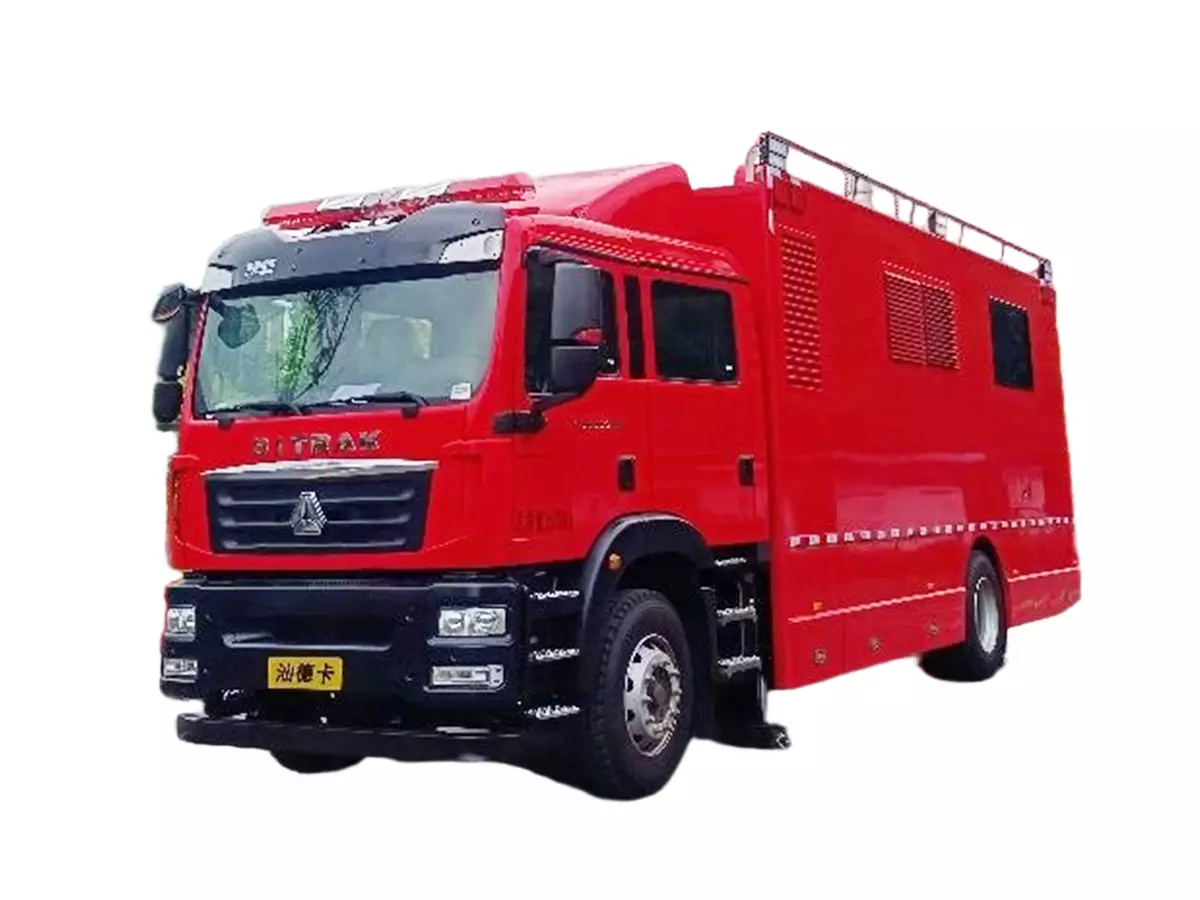

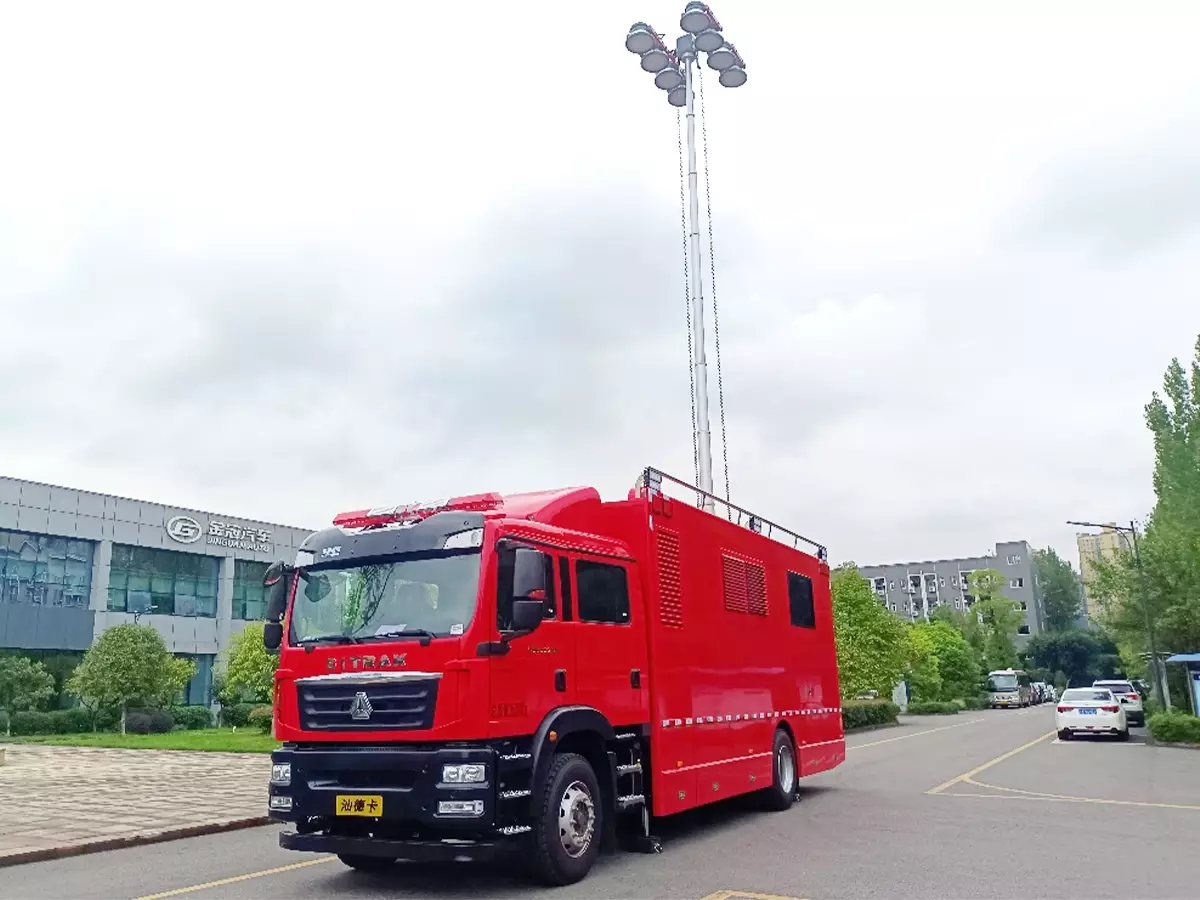

Lighting Vehicle
Field logistical support vehicle series: camp, catering, shower, water‑purification, bedding‑washing, hand‑washing, power‑supply, lighting and refrigerated vehicles. Modular customized body, self‑contained water & power system, for emergency rescue and field mission support.
|
Maximum Speed (km/h): |
110 |
|---|---|
|
Displacement (L): |
7.36 |
|
Fuel type |
Diesel |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.

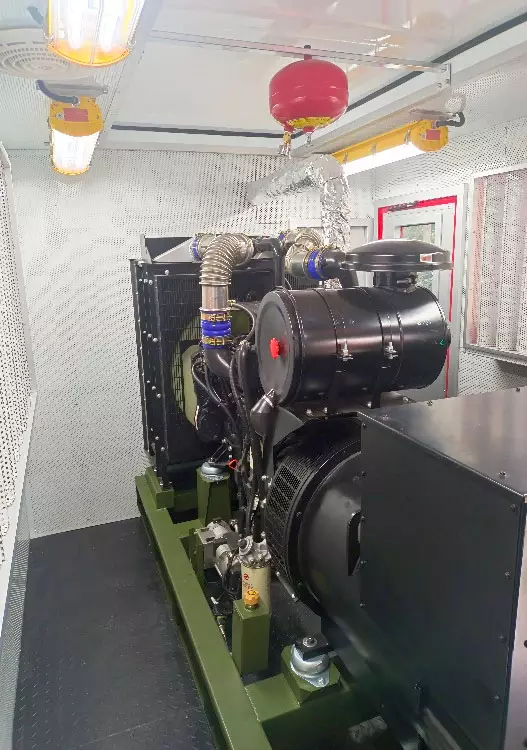

Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle Name: | Lighting vehicle | Announcement Model: | SLT5160XZMFH2L |
| Chassis Brand: | Sitrak | Chassis model: | ZZ5206N471GF5 |
| Cargo Box Dimensions (mm): | – | Overall dimensions (mm): | 10150×2550×3850 |
| Total mass (kg): | 16000 | Curb weight (Kg): | 15610 |
| Anti-lock braking system: | Yes | Approach angle/Departure angle: | 16/10(°) |
| Axle load: | 5400/10600 | Front overhang/Rear overhang (mm): | 1450/3100 |
| Front track: | 1998 | Rear track: | 1850 |
| Drive type: | 4×2 | Wheelbase: | 4700 |
| Maximum speed (km/h): | 110 | Tires: | 295/80R22.5 |
| Displacement (L): | 7.36 | Power/Horsepower: | 258(kw)/350(PS) |
| Fuel type: | Diesel | Emission standard: | China VI |
| Other chassis: | Iveco light bus chassis |
