Communication Command Fire Truck
Main functions: 4K ultra-high-definition video conferencing; Vehicle- mounted audio and video system Audio and video integrated communication management platform On-site command and dispatch Vehicle- mounted office system Vehicle-mounted high-power lighting system Remote emergency broadcasting system Centralized control system Warning function; Logistical support function; Power supply and distribution system.
|
Drive Type: |
6×4 |
|---|---|
|
Displacement (L): |
12.4 |
|
Fuel type |
Diesel |
Modular Customization
Modular vehicle layouts tailored to different operational requirements, equipment configurations, and mission scenarios.
Integrated Functional Systems
Integrates communication, power supply, monitoring, lighting, control, and specialized equipment into a unified mobile platform.
Reliable Power & Connectivity
Independent power and communication systems support continuous operation in remote, temporary, and emergency environments.
Specialized Mission Equipment
Purpose-built equipment and functional modules are configured for banking, command, firefighting, medical, logistics, and other professional applications.
All-Condition Operational Capability
Designed for rapid deployment and dependable operation across emergency response, field missions, mobile services, and complex working environments.
| Vehicle name: | Communication Command Fire Truck | Announcement Model: | SLT5220TXFTZ5500 |
| Chassis brand: | SITRAK brand | Chassis Model: | ZZ1256V524MF1 |
| Cargo box dimensions (mm): | – | Overall Dimensions (mm): | 11860×2510×3980 |
| Gross Weight (Kg): | 22000 | Curb Weight (Kg): | 21850 |
| Anti-lock Braking System: | Yes | Approach/Departure Angle: | 19/10(°) |
| Axle Load: | 7000/7500/7500 | Front Overhang/Rear Overhang (mm): | 1492/2968 |
| Drive Type: | 6×4 | Maximum Speed (km/h): | 105 |
| Displacement (L): | 12.4 | Power/Horsepower: | 400(kw)/540(PS) |
| Fuel Type: | Diesel | Emission Standard: | China VI |

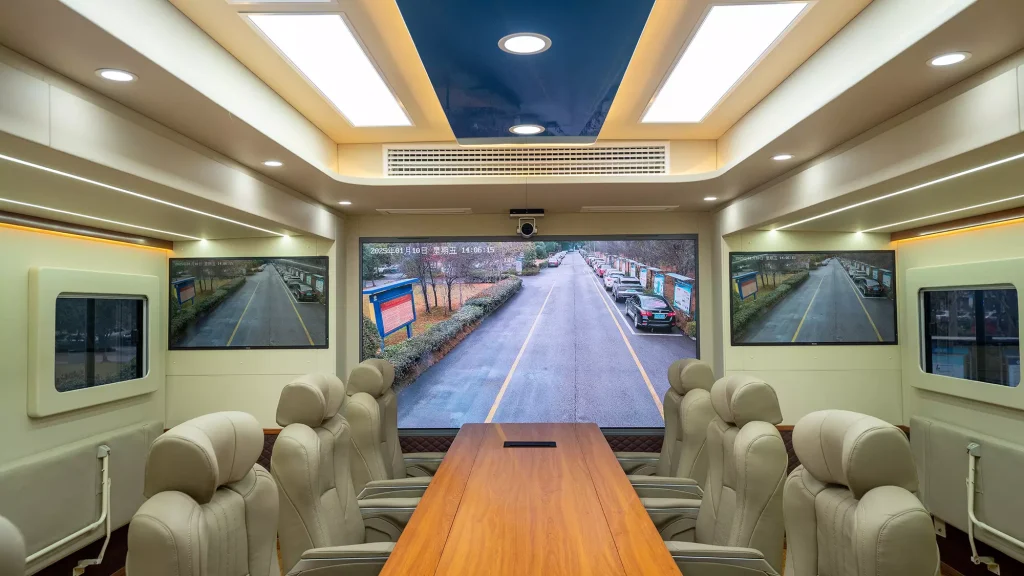

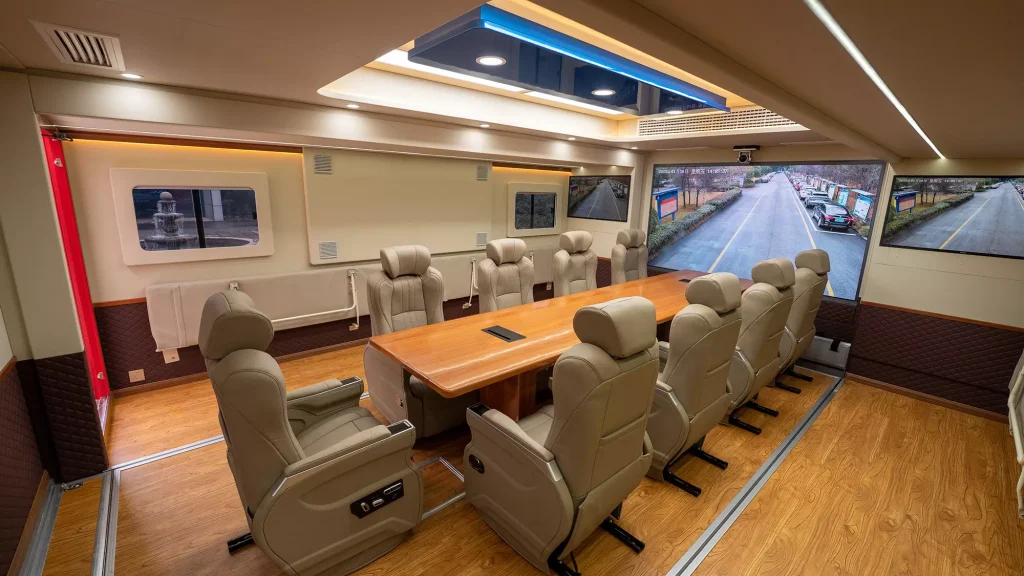

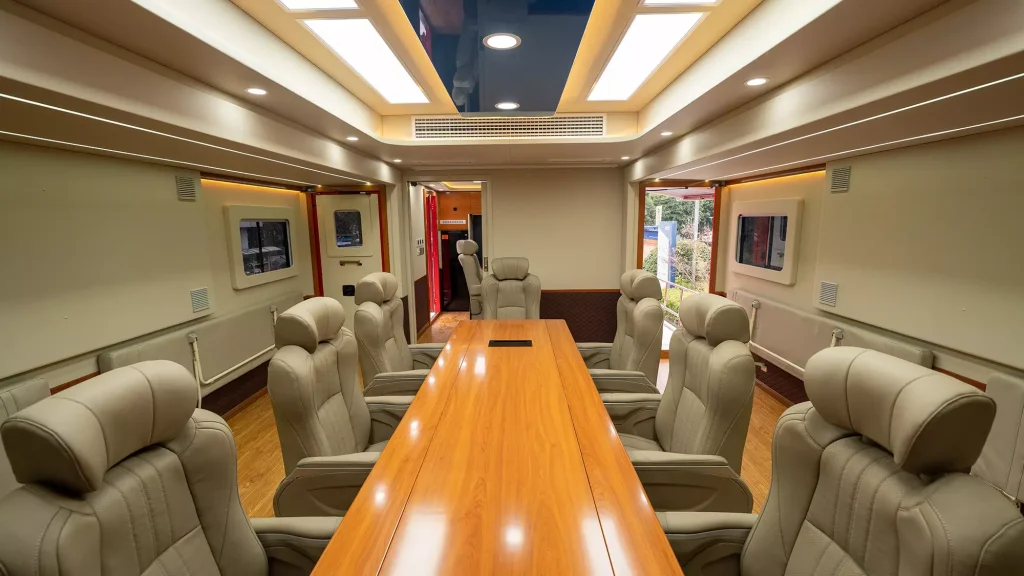

| Conference Area: | 22-32 m² (after expansion) | Conference Table Parameters: | Height≥750mm, Width≥800mm |
| Operation Room Seats | 2-3 persons | ||
| Functional System | UAV systems, satellite communication systems, conferencing systems, audio-visual systems, centralized control systems, computer/network equipment, power supply systems, lighting systems | ||
